Equivalent, replacement, alternative, analog, retrofit, analogue: DuPont DOW UF Membrane SFP-2880XP, DOW SFP2880XP

General Information

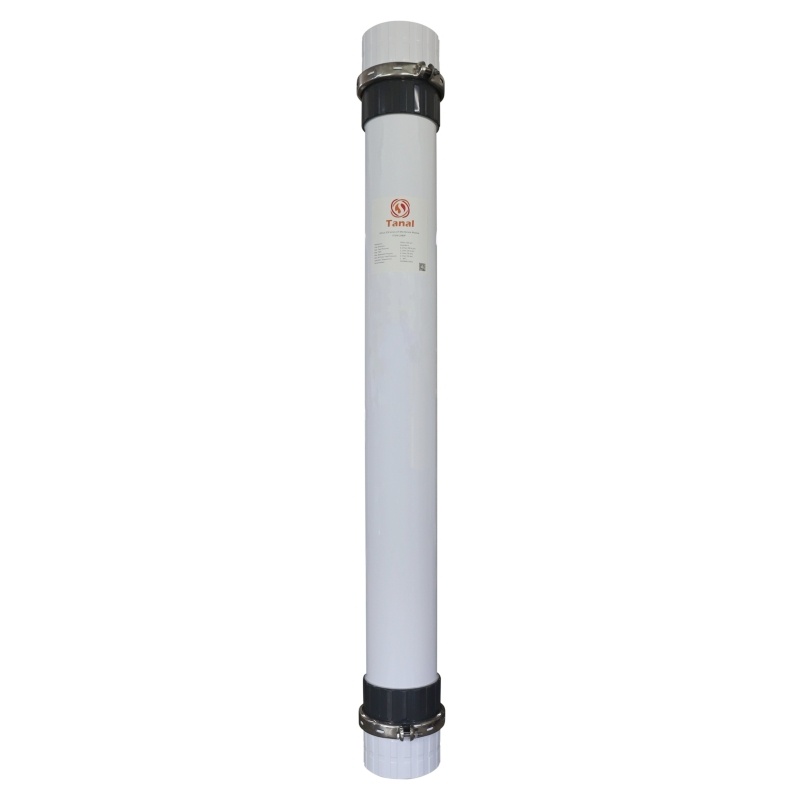

TFSF-2880PX is manufactured as an equivalent, direct replacement, alternative, analog, retrofit and analogue to replace DOW SFP-2880XP (SFP2880XP) UF membrane module.
TFSF-2880PX membrane modules are pressurized modules, which are designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of upgraded new generation PVDF hollow fibers with extra permeability.
These series UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

  • Outside-to-inside flow direction
  • New generation PVDF hollow fiber
  • Nominal pore size of 0.03 μm
  • Typical filtrate quality SDI≤2.5, turbidity≤0.1 NTU

Advantages

  • High tolerance for feed water
  • High-quality filtrate
  • Less energy needed by extra high permeability
  • Longer service life by high fouling resistance and mechanical strength
  • Direct and economical module replacement

Applications

  • Surface water
  • Potable water
  • Municipal sewage
  • Beverage clarification
  • Industrial wastewater
  • Reclaimed water reuse
  • Pre-treatment of sea water desalination

Module Dimensions

DOW SFP-2880 Equivalent Module Dimensions
Model

Application

L

L1

D

H

Connector

TFSF-2880PX

Industrial

2360±3 mm

(92.9±0.1 inch)

2130±3 mm

(83.9±0.1 inch)

225 mm

(8.9 inch)

180 mm

(7.1 inch)

DN50

Specifications

Specifications

Parameters

Part number

TFSF-2880PX

Effective membrane area

77 m²(829 ft²)

Volume

39 L(10.3 gallon)

Dry weight

61 KG(100 lbs)

Wet weight filled with water

135 KG(220 lbs)

Membrane material

PVDF(Polyvinylidene Fluoride)

Fiber ID/OD

0.7/1.3 mm(0.02/0.05 inch)

Flow direction

Outside-in

Pore size

0.03 μm

Housing material

UPVC

Clamp material

Stainless Steel

Potting material

Epoxy resin/Polyurethane

Operating and Cleaning Limits

Type of operation

Dead-end flow or cross flow

Design flux(25°C)

40-120 L/m2·h(24-71 gfd)

Temperature

1-40°C(34-104°F)

Maximum feed pressure(20°C)

6.25 bar(90.6 psi)

Maximum feed pressure(40°C)

 4.75 bar(68.8 psi)

Maximum trans-membrane pressure

2.1 bar(30.5 psi)

Backwash flux(25°C)

80-120 L/m2·h(48-71 gfd)

Maximum backwash pressure

2.5 bar(36 psi)

Maximum air scour feed pressure

2.5 bar(36 psi)

Maximum air scour flow

4-12 Nm3/hr(2.4-7.1 scfm)

pH-Continuous operation @25°C

2-11

Maximum NaClO

 2,000 mg/L

Maximum feed TSS

100 ppm

Maximum feed turbidity

300 NTU

Maximum feed particle size

 300 µm

Filtrate SDI15

≤2.5

Filtrate turbidity

≤0.1 NTU
