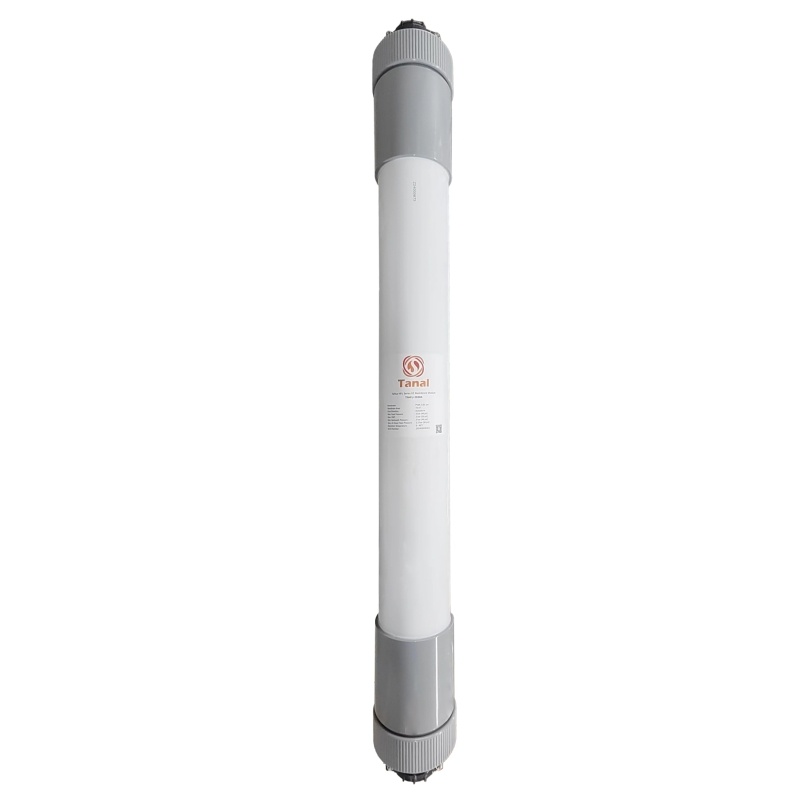

HFU-2020AN Equivalent

Product No.：TFHFU-2020A
Online Inquiry

Equivalent, replacement, alternative, analog, retrofit, analogue: Toray HFU-2020AN, HFU2020AN

General Information

TFHFU-2020A is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Toray HFU-2020AN (HFU2020AN) UF membrane module.
TFHFU-2020A ultrafiltration (UF) membrane module is a pressurized module, which is designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.

TFHFU-2020A UF module is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
New generation PVDF hollow fiber
Nominal pore size of 0.01 μm
Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

High tolerance for feed water and high-quality filtrate
Smaller footprint design with CAPEX reduction
Less energy needed by high flux
Longer service life by high fouling resistance and mechanical strength
Direct and economical module replacement

Applications

Surface water
Well water
Potable water
Industrial process water
Reclaimed water reuse
Pre-treatment of sea water desalination

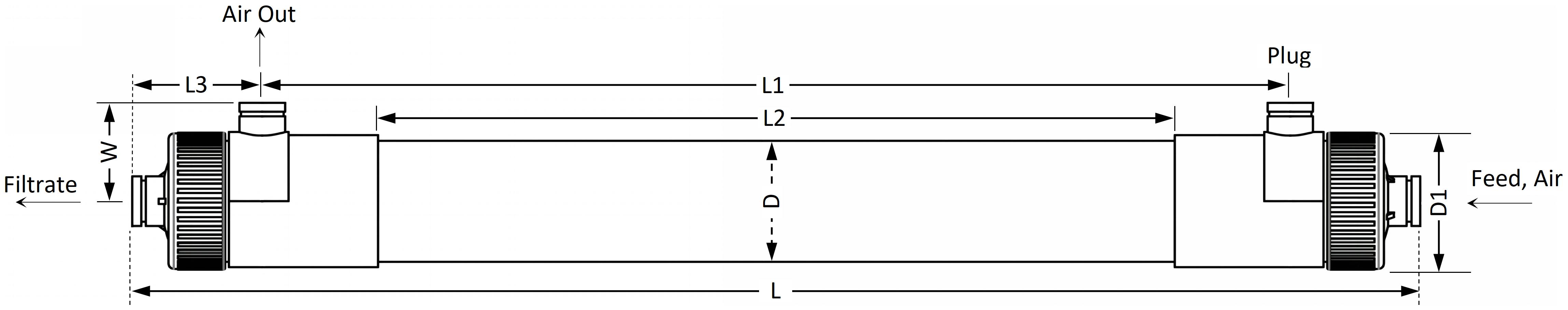

Module Dimensions

Model

(mm/in)

Feed, Filtrate

Concentrate

TFHFU-2020A

2,160/

85.04

1,724/

67.87

1,314/

51.73

218/

8.58

248/

9.76

216/8.5

218/

8.58

Φ89.1/DN80

Φ76.3/

DN65

Specifications

Specifications	Parameters
Model	TFHFU-2020A
Effective membrane area	72 m² (775 ft²)
Fiber ID/OD	0.9/1.4 mm (0.04/0.06 inch)
Membrane material	PVDF (Polyvinylidene Fluoride)
Flow direction	Outside-in
Pore size	0.01 μm
Housing material	PVC
End caps material	PVC
Potting material	Epoxy resin
Caps & nuts with housing	Integrated
O-rings material	EPDM
Dry weight	49 KG (108 lbs)
Wet weight filled with water	92 KG (203 lbs)

Operating and Cleaning Limits

Maximum feed flux	12 m³/h (53 gpm)
Maximum backwash flux	13.5 m³/h (59 gpm)
Type of operation	Dead-end flow
Design flux (25°C)	36-120 L/m²·h (21.6-71 gfd)
Temperature	0-40°C (32-104°F)
Maximum feed pressure (20°C)	3 bar (44 psi)
Maximum trans-membrane pressure	2 bar (29 psi)
Maximum backwash pressure	3 bar (44 psi)
Maximum air scour feed pressure	2.5 bar (36 psi)
Maximum air scour flow	9 Nm³/hr (5.3 scfm)
pH continuous operation @ 25°C	2-11
pH cleaning @ 25°C	1-12
Maximum NaClO	3,000 mg/L
Maximum NaClO exposure (lifetime contact time) as Cl₂	1,000,000 mg/L hours
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤ 2.5
Filtrate turbidity	≤ 0.1 NTU
