  • IntegraTec SFD-2660 Equivalent

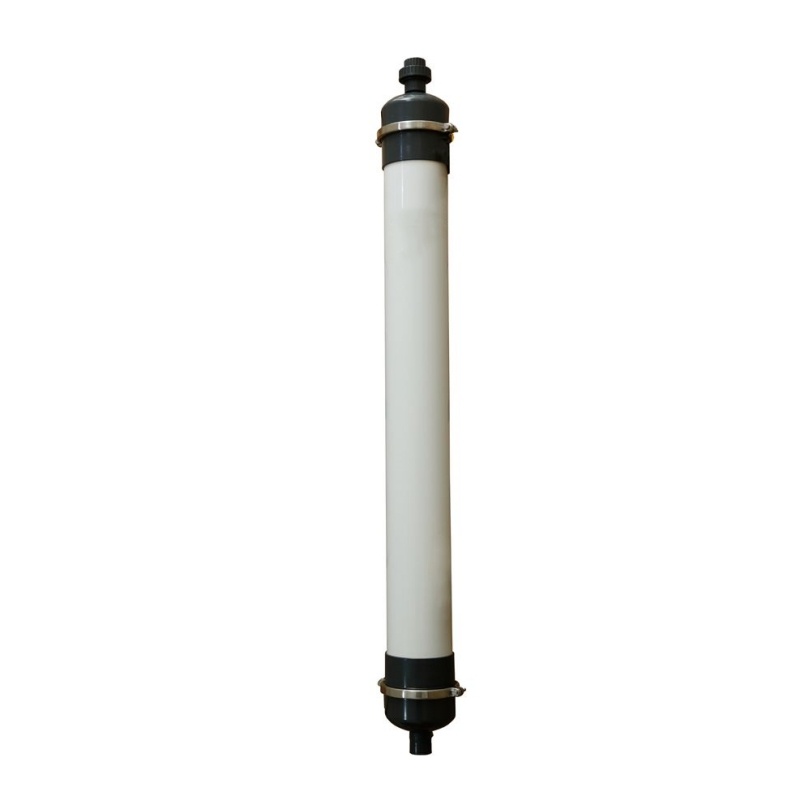

IntegraTec SFD-2660 Equivalent

IntegraTec SFD-2660 Equivalent

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: DuPont DOW SFD-2660, IntegraTec SFD-2660, SFD2660

General Information

TFSF-2660D is manufactured as an equivalent, direct replacement, alternative, retrofit and analogue to replace DuPont IntegraTec SFD-2660 (SFD2660) ultrafiltration membrane.
TFSF-2660D membrane modules are pressurized modules, which are designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.
TaFlux SF series TFSF-2660D ultrafiltration modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

  • Outside-to-inside flow direction
  • New generation PVDF hollow fiber
  • Nominal pore size of 0.03 μm
  • Typical filtrate quality SDI ≤2.5, turbidity ≤0.1 NTU

Advantages

  • High tolerance for feed water
  • High-quality filtrate
  • Less energy needed by high flux
  • Longer service life by high fouling resistance and mechanical strength
  • Economical equivalent module for direct replacement of DuPont IntegraTec SFD-2660

Applications

  • Surface water
  • Potable water
  • Municipal sewage
  • Beverage clarification
  • Industrial wastewater
  • Reclaimed water reuse
  • Pre-treatment of sea water desalination

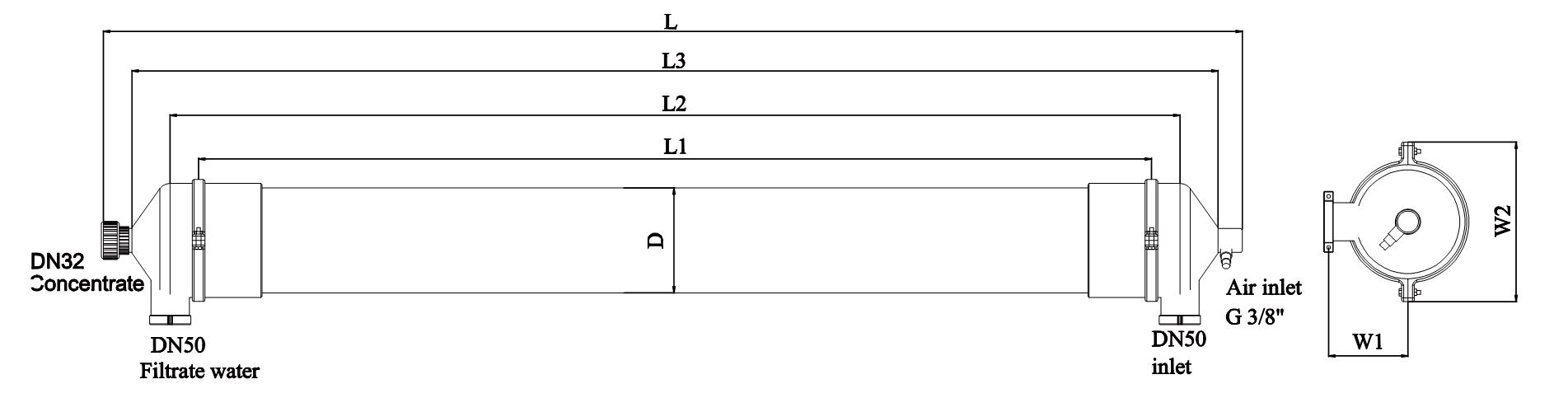

Module Dimensions

DuPont IntegraTec SFD-2660 Ultrafiltration Membrane Module Equivalent Module Dimensions

Model

Application

L

(mm/inch)

L1

(mm/inch)

L2

(mm/inch)

L3

(mm/inch)

D

(mm/inch)

W1

(mm/inch)

W2

(mm/inch)

TFSF-2660D

Drinking Water

1860±3

(73.2±0.1)

1500±3

(59.1±0.1)

1610±3

(63.4±0.1)

1710±3

(67.3±0.1)

165

(6.5)

125 (4.9)

250 (9.8)

Specifications

Model

TFSF-2660D

Effective membrane area

33 m² (355 ft²)

Membrane material

PVDF (Polyvinylidene Fluoride)

Fiber ID/OD

0.7/1.3 mm (0.02/0.05 inch)

Flow direction

Outside-in

Pore size

0.03 μm

Housing material

UPVC

Clamp material

Stainless Steel

Potting material

Epoxy resin/Polyurethane

Volume

16 L (4.2 gallon)

Dry weight

25 KG (41 lbs)

Wet weight filled with water

55 KG (90 lbs)

Operating and Cleaning Limits

Type of operation

Dead-end flow or cross flow

Design flux (25°C)

40 - 120 L/m2·h (24 - 71 gfd)

Temperature

1 - 40°C (34 - 104°F)

Maximum feed pressure (20°C)

6.25 bar (90.6 psi)

Maximum feed pressure (40°C)

4.75 bar (68.8 psi)

Maximum trans-membrane pressure

2.1 bar (30.5 psi)

Backwash flux (25°C)

80 - 120 L/m2·h (48 - 71 gfd)

Maximum backwash pressure

2.5 bar (36 psi)

Maximum air scour feed pressure

2.5 bar (36 psi)

Maximum air scour flow

4 - 12 Nm3/h (2.4 - 7.1 scfm)

pH-Continuous operation @25°C

2 - 11

Maximum NaClO

2,000 mg/L

Maximum feed TSS

100 ppm

Maximum feed turbidity

300 NTU

Maximum feed particle size

 300 µm

Filtrate SDI15

≤ 2.5

Filtrate turbidity

≤ 0.1 NTU



We offer various UF membrane module equivalents. If you and your customer accept DuPont IntegraTec SFD-2660 ultrafiltration membrane module equivalent, please send us an inquiry now.
