Max 40 Equivalent

Product No.：TFMAXP52
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Hydranautics HYDRAcap Max 40 TIPS, Max40 TIPS

General Information

TFMAXP52 is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Hydranautics HYDRAcap Max 40 (Max40) UF membrane module.
TaFlux TaCap Max Pro series TFMAXP52 ultrafiltration (UF) membrane modules are pressurized modules, which are designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of new generation TIPS (thermally induced phase separation) PVDF hollow fiber membrane with high tensile strength and fouling resistance.
TFMAXP52 UF modules are applied in flexible UF systems, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes such as NF and RO.

Features

Outside-to-inside flow direction
New generation PVDF hollow fiber
Uniform pore size of 0.08 μm
Typical filtrate turbidity ≤ 0.1 NTU
Bacteria removal ≥ 4 log

Advantages

Extra high tensile strengh for longer service life
High tolerance for feed water
High-quality filtrate
Less energy needed for high flux
Longer service life by high fouling resistance
Economical equivalent module for direct replacement to Hydranautics HYDRAcap MAX 40

Applications

Surface water
Potable water
Beverage clarification
Industrial process water
Reclaimed water reuse
Industrial wastewater
Pre-treatment of seawater desalination

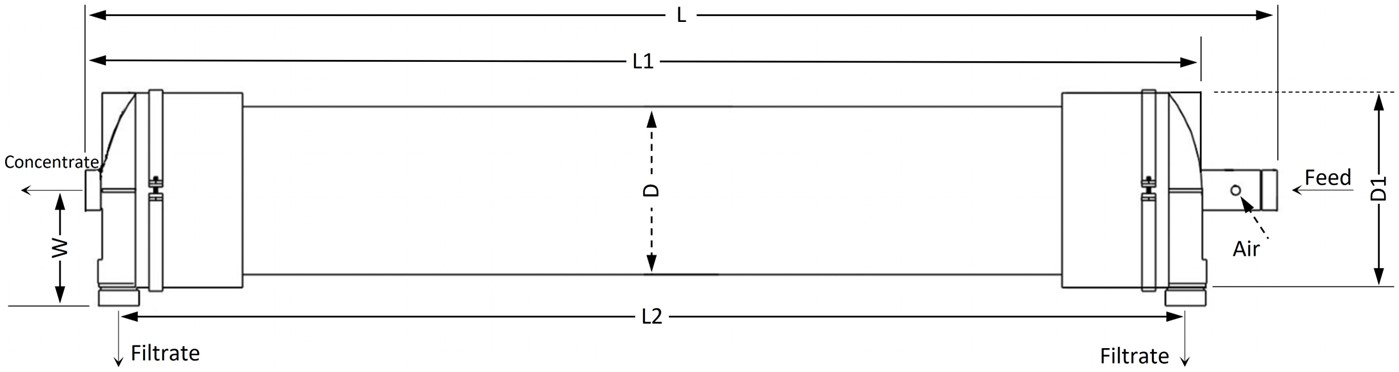

Module Dimensions

Model

(mm/in)

Connection port

Air inlet

TFMAXP52

1364.9/53.74

1257.3/49.5

1135.5/44.7

250/9.84

290/11.42

172/6.8

DN50 (2” Victaulic)

3/8” FNPT

Specifications

Specifications	Parameters
Model	TFMAXP52
Effective membrane area (m²/ft²)	52/560
Filtrate flow rate m³/h (gpm)	1.7 - 6.2 (7.5 - 27.3)
Dry weight (KG/lbs)	41/90
Wet weight filled with water (KG/lbs)	73/161
Membrane material	PVDF (Polyvinylidene Fluoride), TIPS
Fiber ID/OD	0.6/1.2 mm (0.024/0.047 inch)
Flow direction	Outside-in
Pore size	0.08 μm
Housing material	UPVC
Potting material	Epoxy resin

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Typical flux (25°C)	34 - 120 L/m²·h (20 - 71 gfd)
Temperature	1 - 40°C (34 - 104°F)
Maximum feed pressure (20°C)	5 bar (73 psi)
Maximum feed pressure (40°C)	3 bar (44 psi)
Maximum trans-membrane pressure	2 bar (30 psi)
Maximum air scour feed pressure	2.5 bar (36 psi)
Air scour flow	12.3 - 15.4 Nm³/h (7.3 - 9.1 acfm)
Air scour duration	2 - 4 minutes
Air scour frequency	Once every 20 - 60 minutes
pH-Continuous operation @25°C	2 - 11
pH-Cleaning @25°C	1 - 13
Maintenance cleaning frequency	1 - 3 times per day
Maintenance cleaning duration	20 - 30 minutes
Disinfection chemicals	NaClO, ClO₂ or NH₂Cl
Cleaning chemicals	NaOH, HCl, H₂SO₄ or citric acid
Instantaneous chlorine tolerance	5,000 ppm
Maximum chlorine exposure	750,000 ppm-hrs
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤ 2.5
Filtrate turbidity	≤ 0.1 NTU

We offer various UF membrane module equivalents. If you and your customer accept Hydranautics HYDRAcap Max 40 equivalent UF membrane module, please send us an inquiry now.
