IP-77XP Retrofit

Product No.：TFIM-77PXRT
Online Inquiry

Retrofit: DuPont DOW IntegraPac IP-77XP, IP 77XP, IP77XP

General Information

TFIM-77PXRT is manufactured as a retrofit to replace DuPont DOW IntegraPac IP-77XP (IP77XP) UF membrane module.

TFIM-77PXRT membrane modules are pressurized integrated modules, which are designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of upgraded new generation PVDF hollow fibers with extra permeability.

These UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
Upgraded new generation PVDF hollow fiber
Nominal pore size of 0.03 μm
Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

Integrated design for easy installation
High-quality filtrate
Less energy needed by extra high permeability
Longer service life by high fouling resistance and mechanical strength
Direct and economical module replacement

Applications

Surface water
Potable water
Municipal sewage
Beverage clarification
Industrial wastewater
Reclaimed water reuse
Pre-treatment of sea water desalination

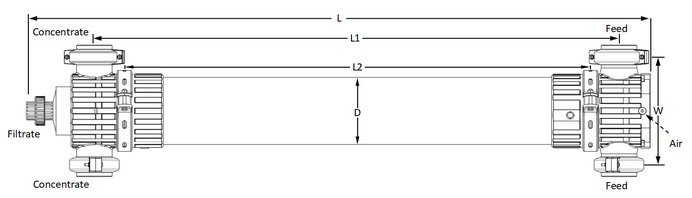

Module Dimensions

Model

Application

TFIM-77PXRT

Industrial

2488±3 mm

(98±0.1 inch)

2189±3 mm

(86.2±0.1 inch)

2000±3 mm

(78.8±0.1 inch)

225 mm

(8.9 inch)

360 mm

(14.1 inch)

Specifications

Specifications	Parameters
Model	TFIM-77PXRT
Effective membrane area	77 m² (829 ft²)
Volume	39 L (10.3 gallon)
Dry weight	61 KG (100 lbs)
Wet weight filled with water	135 KG (220 lbs)
Membrane material	PVDF (Polyvinylidene Fluoride)
Fiber ID/OD	0.7/1.3 mm (0.02/0.05 inch)
Flow direction	Outside-in
Pore size	0.03 μm
Housing material	UPVC
Clamp material	Stainless Steel
Potting material	Epoxy resin/Polyurethane
Feed, concentrate connector	DN100 coupling
Filtrate connector	DN40 union
Air connector	3/8”

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Design flux(25°C)	40-120 L/m²·h(24-71 gfd)
Temperature	1-40°C(34-104°F)
Maximum feed pressure(20°C)	6.25 bar(90.6 psi)
Maximum feed pressure(40°C)	4.75 bar(68.8 psi)
Maximum trans-membrane pressure	2.1 bar(30.5 psi)
Backwash flux(25°C)	80-120 L/m²·h(48-71 gfd)
Maximum backwash pressure	2.5 bar(36 psi)
Maximum air scour feed pressure	2.5 bar(36 psi)
Maximum air scour flow	4-12 Nm³/hr(2.4-7.1 scfm)
pH-Continuous operation @25°C	2-11
Maximum NaClO	2,000 mg/L
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤2.5
Filtrate turbidity	≤0.1 NTU
