Products >> Tubular Membrane Module >> PVDF Tubular Membrane Module
General Information
PVDF tubular membrane module is made of PVDF tubular membrane with porous walls, which is mainly for difficult wastewater or viscose waste oil/water mixtures etc.Tubular ultrafiltration membranes are pressurized modules, which are designed and manufactured for the filtration in industrial wastewater, landfill leachate and other critical applications. These PVDF UF tubular modules are made of upgraded new generation tubular membrane with extra permeability and service life.
Tubular membrane modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality permeate by removing suspended solids and other impurities to protect downstream processes or discharge.
Features
New generation tubular membranes of PVDFInner diameter from 5 to 25 mm
Inside-to-outside flow direction
Different pore sizes for various applications
Multiple options for membrane diameter
Good anti-fouling performance
CPVC and FRP housings
Advantages
Standardized design for easy installationHigh-quality permeate
Less energy needed by extra high permeability
Longer service life by high fouling resistance and mechanical strength
Economical module for direct replacement
Applications
Surface waterPre-treatment RO and NF
Drinking and process water production
Effluent treatment
Membrane bioreactor
Industrial wastewater
Landfill leachate
Oil-in-water emulsions treatment
Completion fluids in Oilfield

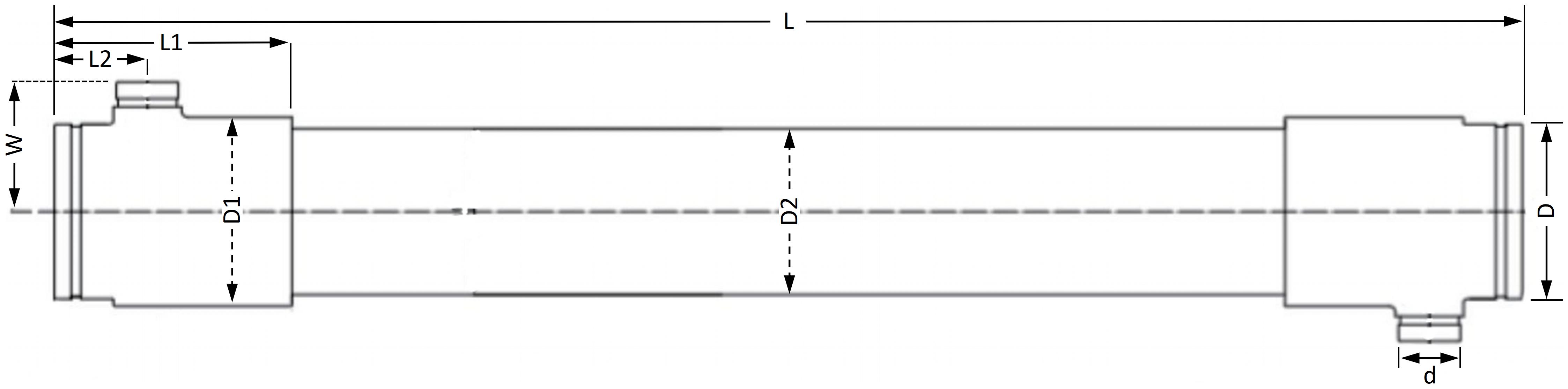

Dimensions
|
L* |
L1 |
L2 |
D |
D1 |
D2 |
W |
d |
|
3000 mm |
240 mm |
90 mm |
220 mm |
240 mm |
214 mm |
165 mm |
73 mm |
Specifications
Model
TFTP8-27
TFTP5-33
Membrane ID
8 mm (0.31 inch)
5.2 mm (0.2 inch)
Effective membrane area
27 m² (291 ft²)
33 m² (356 ft²)
Dry weight
40 KG (88 lbs)
45 KG (100 lbs)
Wet weight filled with water
100 KG (220 lbs)
110 KG (242 lbs)
Membrane material
PVDF (Polyvinylidene Fluoride)
Pore size
30 nm
Flow direction
Inside-out
Housing material
CPVC
Potting material
Epoxy resin
|
Model |
TFTP8-27 |
TFTP5-33 |
|
Membrane ID |
8 mm (0.31 inch) |
5.2 mm (0.2 inch) |
|
Effective membrane area |
27 m² (291 ft²) |
33 m² (356 ft²) |
|
Dry weight |
40 KG (88 lbs) |
45 KG (100 lbs) |
|
Wet weight filled with water |
100 KG (220 lbs) |
110 KG (242 lbs) |
|
Membrane material |
PVDF (Polyvinylidene Fluoride) |
|
|
Pore size |
30 nm |
|
|
Flow direction |
Inside-out |
|
|
Housing material |
CPVC |
|
|
Potting material |
Epoxy resin |
|
Operating Limits
Clean water flux (25°C, 100 kPa)
900 L/m2·h (529 gfd)
Maximum temperature
65°C (149°F)
Maximum feed pressure
8 bar (800 kPa)
Maximum trans-membrane pressure
-0.6 - 6 bar (-60 - 600 kPa)
pH-Continuous operation @25°C
2 - 10
Chlorine exposure
250,000 ppm·h
|
Clean water flux (25°C, 100 kPa) |
900 L/m2·h (529 gfd) |
|
Maximum temperature |
65°C (149°F) |
|
Maximum feed pressure |
8 bar (800 kPa) |
|
Maximum trans-membrane pressure |
-0.6 - 6 bar (-60 - 600 kPa) |
|
pH-Continuous operation @25°C |
2 - 10 |
|
Chlorine exposure |
250,000 ppm·h |
