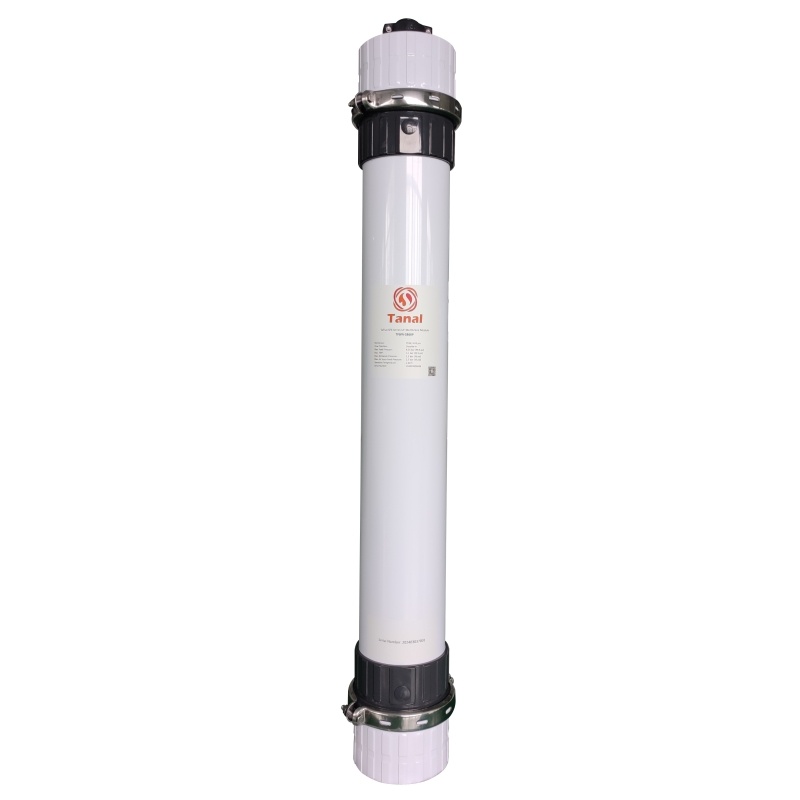

SFD-2860XP Equivalent

Product No.：TFSFX-2860D
Online Inquiry

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: DuPont DOW IntegraFlux SFD 2860XP, DOW SFD-2860XP, SFD2860XP, SFD-2860 XP

General Information

TFSFX-2860D is manufactured as an equivalent, replacement, alternative, retrofit, analogue, derivative and substitution to replace DuPont DOW IntegraFlux SFD 2860XP (SFD-2860XP) UF membrane module.

TFSFX-2860D membrane modules are pressurized modules, which are designed and manufactured for the filtration of surface water, potable water, drinking water, food & beverage water and pre-treatment of sea water desalination etc. These UF modules are made of upgraded new generation PVDF hollow fibers with extra permeability.

These UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
New generation PVDF hollow fiber
Nominal pore size of 0.03 μm
Typical filtrate quality SDI≤2.5, turbidity≤0.1 NTU

Advantages

High tolerance for feed water
High-quality filtrate
Less energy needed by extra high permeability
Longer service life by high fouling resistance and mechanical strength
Direct and economical module replacement

Applications

Surface water
Potable water
Drinking water
Beverage clarification
Pre-treatment of sea water desalination

Module Dimensions

Model

Application

Connector

TFSFX-2860D

Drinking Water

1860±3 mm

(73.2±0.1 inch)

1630±3 mm

(64.2±0.1 inch)

225 mm

(8.9 inch)

180 mm

(7.1 inch)

DN50

Specifications

Specifications	Parameters
Model	TFSFX-2860D
Effective membrane area	51 m²(549 ft²)
Volume	35 L(9.3 gallon)
Dry weight	48 KG(83 lbs)
Wet weight filled with water	106 KG(183 lbs)
Membrane material	PVDF (Polyvinylidene Fluoride)
Fiber ID/OD	0.7/1.3 mm(0.02/0.05 inch)
Flow direction	Outside-in
Pore size	0.03 μm
Housing material	UPVC
Clamp material	Stainless Steel
Potting material	Epoxy resin/Polyurethane

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Design flux(25°C)	40-120 L/m²·h(24-71 gfd)
Temperature	1-40°C(34-104°F)
Maximum feed pressure(20°C)	6.25 bar(90.6 psi)
Maximum feed pressure(40°C)	4.75 bar(68.8 psi)
Maximum trans-membrane pressure	2.1 bar(30.5 psi)
Backwash flux(25°C)	80-120 L/m²·h(48-71 gfd)
Maximum backwash pressure	2.5 bar(36 psi)
Maximum air scour feed pressure	2.5 bar(36 psi)
Maximum air scour flow	4-12 Nm³/hr(2.4-7.1 scfm)
pH-Continuous operation @25°C	2-11
Maximum NaClO	2,000 mg/L
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤2.5
Filtrate turbidity	≤0.1 NTU
