ZeeWeed 1500 Retrofit

Product No.：TFZW55ZRT
Online Inquiry

Retrofit: ZeeWeed 1500, ZeeWeed1500

General Information

TFZW55ZRT is manufactured as the direct retrofit to replace ZeeWeed 1500 UF membrane module in replacement water and wastewater treatment project.

TFZW55ZRT UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
New generation PVDF hollow fiber
Nominal pore size of 0.02 μm
Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

High tolerance for feed water
High-quality filtrate
Less energy needed with high flux
Longer service life by high fouling resistance and mechanical strength
Economical retrofit module for direct replacement of ZeeWeed 1500

Applications

Surface water
Potable water
Industrial wastewater
Reclaimed water reuse
Pre-treatment of sea water desalination

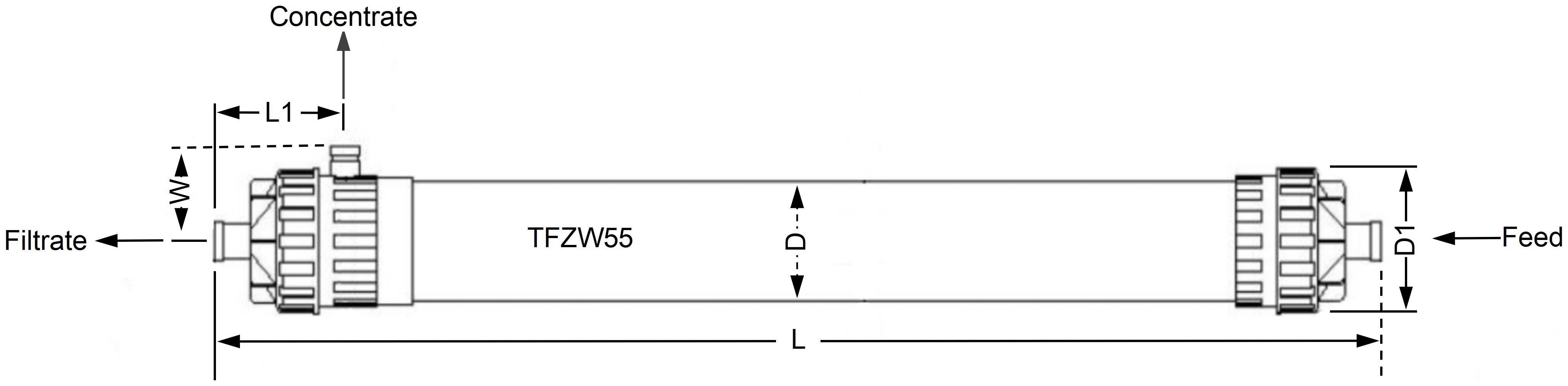

Module Dimensions

Model	L (mm/inch)	L1 (mm/inch)	D (mm/inch)	D1 (mm/inch)	W (mm/inch)	Feed/ Filtrate port	Concentrate port	Joint type
TFZW55ZRT^*	1,919/75.55	216/8.5	219/8.62	180/7.09	145/5.71	DN50 Victaulic	DN40 Victaulic	UPVC union

* Formerly TFZW7055C.

Specifications

Effective membrane area	55.7 m² (600 ft²)
Membrane material	PVDF (Polyvinylidene Fluoride)
Pore size	0.02 μm
Membrane surface properties	Hydrophilic and non-ionic
Fiber ID/OD	0.65/1.2 mm (0.03/0.05 inch)
Housing material	UPVC
Potting material	Epoxy resin
Wet weight filled with water	32 KG (70.5 lbs)
Shipping weight	37 KG (80 lbs)

Operating and Cleaning Limits

Flow direction	Outside-in
Type of operation	Dead-end flow or cross flow
Design flux(25°C)	40-120 L/m²·h(24-71 gfd)
Temperature	1-40°C (34-104°F)
Maximum feed pressure(20°C)	0.4 MPa (58 psi)
Maximum trans-membrane pressure	0.28 MPa (40.6 psi)
Backwash flux(25°C)	32-120 L/m²·h(19.2-71 gfd)
Maximum backwash pressure	0.25 MPa (36 psi)
Maximum air scour feed pressure	0.15 MPa (21.8 psi)
Backwash flow	1.8 m³/h (8 gpm)
Air scour flow	4-8.5 Nm³/hr(2.4-5 scfm)
pH-Continuous operation @25°C	2-11
pH-Cleaning @25°C	2-12
Maximum NaClO	1,000 mg/L
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤2.5
Filtrate turbidity	≤0.1 NTU

We offer various UF membrane module retrofits. If you and your customer accept ZeeWeed 1500 retrofit ultrafiltration membrane, please send us an inquiry now.
