ZW1500-x Equivalent

Product No.：TFZW55X
Online Inquiry

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: Suez GE ZeeWeed 1500-600x, ZeeWeed1500-600x, ZW1500-600x, ZW 1500-600x

General Information

TFZW55X is manufactured as the direct equivalent (equivalence), replacement, alternative, analog, retrofit, analogue, derivative and substitution to replace Suez GE ZeeWeed 1500-x (ZW1500-x) UF membrane module.
TFZW55X ultrafiltration (UF) membrane module is a pressurized module, which is designed and manufactured for the filtration of surface water, potable water, seawater, industrial waste water and municipal sewage. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.

TFZW55X UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
New generation PVDF hollow fiber
Nominal pore size of 0.02 μm
Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

High tolerance for feed water
High-quality filtrate
Less energy needed with high flux
Longer service life by high fouling resistance and mechanical strength
Direct and economical module replacement

Applications

Surface water
Potable water
Municipal sewage
Industrial wastewater
Reclaimed water reuse
Pre-treatment of sea water desalination

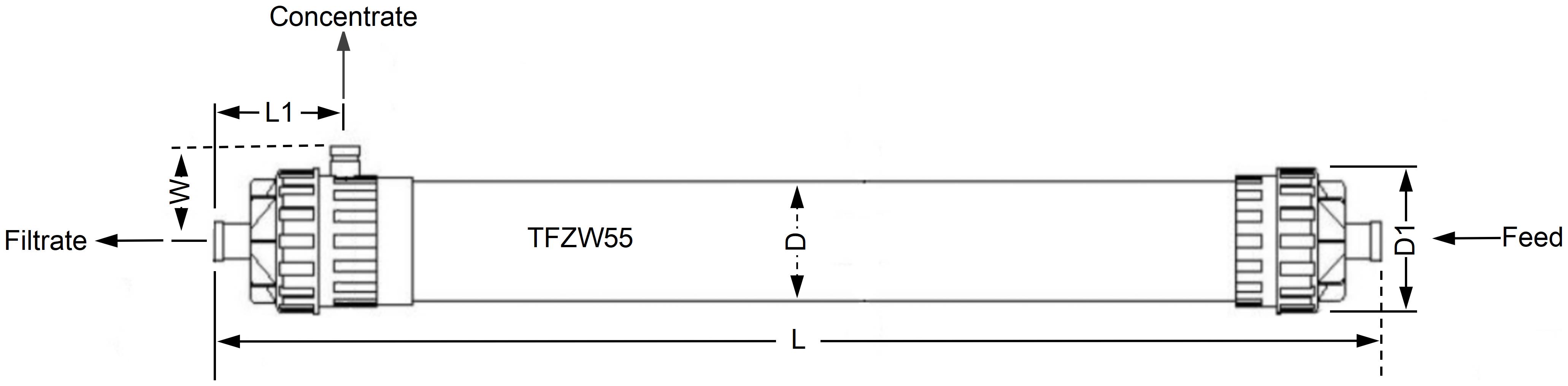

Module Dimensions

Model	L (mm/inch)	L1 (mm/inch)	D (mm/inch)	D1 (mm/inch)	Feed & filtrate port	Concentrate port	Joint type
TFZW55X^*	1,919/75.55	216/8.5	219/8.62	180/7.09	DN50	DN40	UPVC unions

* Formerly TFZW7055C.

Specifications

Effective membrane area	55.7 m²(600 ft²)
Membrane material	PVDF(Polyvinylidene Fluoride)
Pore size	0.02 μm
Fiber ID/OD	0.65/1.2 mm(0.03/0.05 inch)
Flow direction	Outside-in
Housing material	UPVC
Potting material	Epoxy resin
Wet weight filled with water	32 KG(70.5 lbs)
Shipping weight	37 KG(80 lbs)

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Design flux(25°C)	40-120 L/m²·h(24-71 gfd)
Temperature	1-40°C(34-104°F)
Maximum feed pressure(20°C)	4 bar(58 psi)
Maximum trans-membrane pressure	2.8 bar(40.6 psi)
Backwash flux(25°C)	32-120 L/m²·h(19.2-71 gfd)
Maximum backwash pressure	2.5 bar(36 psi)
Maximum air scour feed pressure	1.5 bar(21.8 psi)
Air scour flow	4-8.5 Nm³/hr(2.4-5 scfm)
pH-Continuous operation @25°C	2-11
pH-Cleaning @25°C	2-12
Maximum NaClO	1,000 mg/L
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤2.5
Filtrate turbidity	≤0.1 NTU
