Economical equivalent membranes with quick delivery for replacement in water and wastewater treatment projects.

Products >> Industrial RO Membrane >> Brackish Water RO Membrane

  • CPA2-8040 Equivalent
CPA2-8040 Equivalent

CPA2-8040 Equivalent

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: Hydranautics membrane CPA2-4040 RO Element

General Information

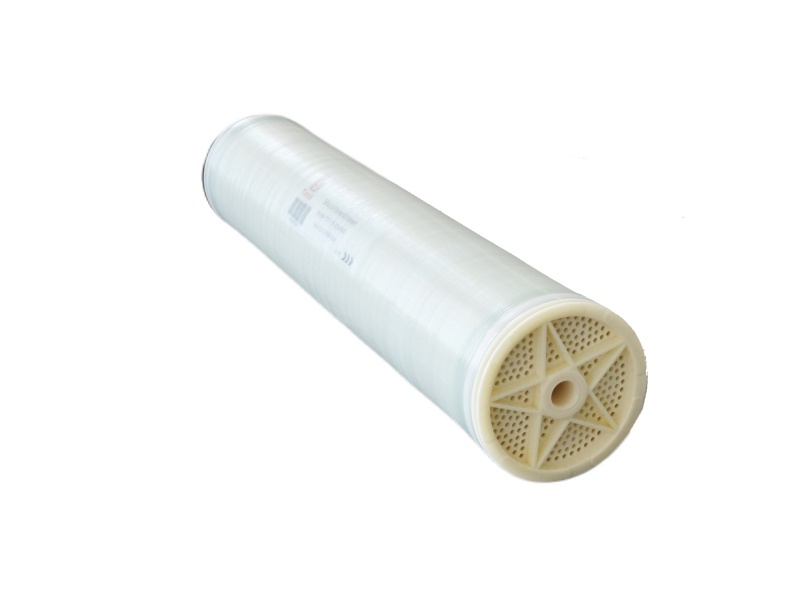

TFBWLD-4040 is manufactured as an equivalent, replacement, alternative, retrofit, analogue to Hydranautics membrane CPA2-4040 RO element.
Hydranautics CPA2-4040 equivalent reverse osmosis membrane elements TFBWLD-4040 are developed for brackish water treatment, ideal for reverse osmosis plant managers and operators dealing with brackish water with pre-treatment.
This reverse osmosis membrane element provides consistency, high permeate water quality, high performance and productivity, and long service life.

Features & Advantages

  • Provides high-quality permeate water
  • Stable salt rejection rate and high permeate flow rate
  • Optimized design, good resistance to fouling results in long service life
  • High chemical tolerance for cleaning with highly effective cleaning performance
  • Economical equivalent element for direct replacement of Hydranautics membrane CPA2-4040 RO Element

Applications

  • Industrial pure water
  • Industrial wastewater reuse
  • Slightly contaminated water

Specifications

  • Configuration: Spiral wound element
  • Membrane Polymer: Polyamide thin-film composite

Performance

Element Model

Membrane Active Area
ft2 (m2)

Feed Spacer
mil (mm)

Permeate Flow Rate*
GPD (m3/d)

Stabilized Salt Rejection**

Minimum Salt Rejection

TFBWLD-8040

400 (37.2)

28 (0.712)

11,500 (43.6)

99.7%

99.6%

Standard test conditions:
The above performance is initial(data record after 30 minutes of operation), based on the following conditions:
1,500 ppm NaCl solution
225 psi (15.5 bar) operating pressure
25°C (77°F) operating temperature
15% permeate recovery
7.5-8 pH range
*Permeate flow for individual elements may vary but will be no more than ±15%.
**Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending on feed water characteristics and operating conditions.
Element Dimensions
Hydranautics membrane CPA2-8040 Equivalent RO Element Dimensions

Length L
inch (mm)

Diameter D
inch (mm)

Permeate tube inner diameter d inch (mm)

40 (1,016)

7.9 (201)

1.125 (28.6)

* Each 8040 membrane element supplied with one interconnector (coupler) with four O-rings.

All 8040 elements fit nominal 8.0 inch (203.2 mm) I.D. pressure vessels.

Operating and Cleaning Limits

Maximum Operating Pressure

600 psi (41 bar)

Maximum Operating Temperature

45°C (113°F)

Maximum Chlorine Concentration

0.1 ppm

pH Range, Continuous

2-11

pH Range, Cleaning

1-13

Maximum Feed SDI (15 mins)

5

Maximum Element Pressure Drop

15 psi (1 bar)

Maximum Feed Flow

17 m3/h

Minimum Ratio of Concentrate to Permeate Flow for Each Element

5:1

The limits shown above are for general applications. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane element.

We offer various RO membrane element equivalents. If you and your customer accept Hydranautics CPA2-8040 equivalent RO membrane element, please send us an inquiry now.
