  • LC HR-4040 Equivalent
LC HR-4040 Equivalent

LC HR-4040 Equivalent

Equivalent, replacement, alternative, analog, retrofit, analogue: DuPont DOW Filmtec LC HR-4040, LCHR 4040, LC HR 4040 343771 (343770)

General Information

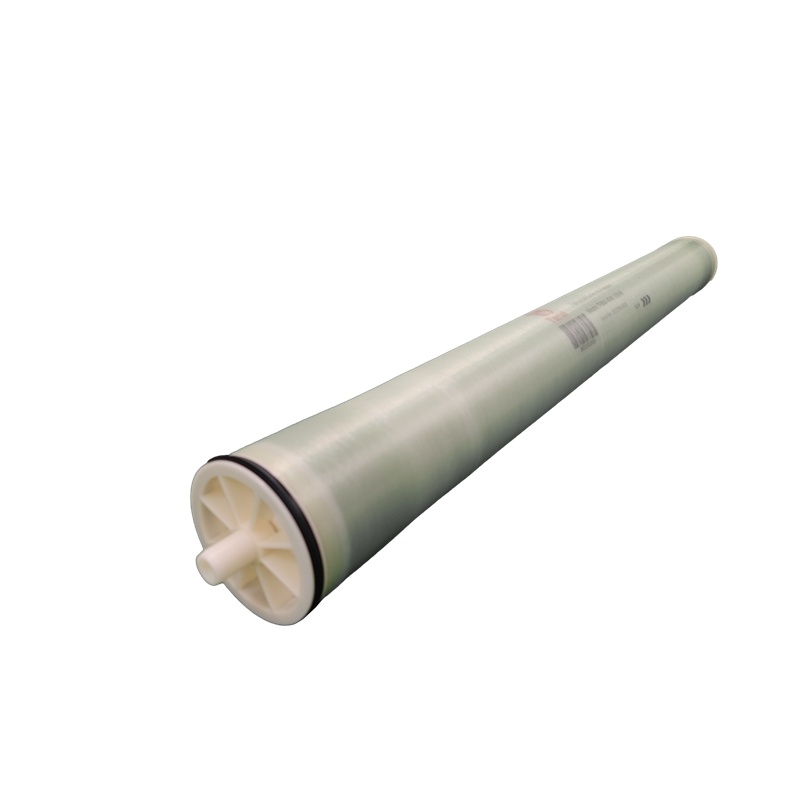

TFBW-4040-100HR is manufactured as an equivalent, direct replacement, alternative, analog, retrofit and analogue for DuPont DOW Filmtec LC HR-4040 (LCHR 4040) RO membrane.
TFBW-4040-100HR reverse osmosis membrane elements are developed for brackish water treatment, ideal for reverse osmosis plant managers and operators dealing with brackish water with pre-treatment.
TFBW-4040-100HR reverse osmosis membrane element provides consistency, high permeate water quality, high performance and productivity, and long service life.

Features & Advantages

  • Provides high-quality permeate water
  • Stable salt rejection rate and high permeate flow rate
  • Optimized design, good resistance to fouling results in long service life
  • High chemical tolerance for cleaning with highly effective cleaning performance
  • Simple and economical element replacement

Applications

  • Industrial pure water
  • Industrial wastewater reuse
  • Slightly contaminated water

Specifications

  • Configuration: Spiral wound element
  • Membrane Polymer: Polyamide thin-film composite
  • Performance

    Element Part Number

    Membrane Active Area ft2(m2)

    Feed Spacer
    mil(mm)

    Permeate Flow Rate*
    GPD(m3/d)

    Stabilized Salt Rejection**

    Minimum Salt
    Rejection

    TFBW-4040-100HR

    100(9.3)

    28(0.712)

    2,900(11)

    99.7%

    99.5%

    Standard test conditions:
    The above performance is initial(data record after 30 minutes of operation), based on the following conditions:
    2,000 ppm NaCl solution
    225 psi(15.5 bar) operating pressure
    25°C(77°F) operating temperature
    15% permeate recovery
    7.5-8 pH range
    *Permeate flow for individual elements may vary but will be no more than ±15%.
    **Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending on feed water characteristics and operating conditions.

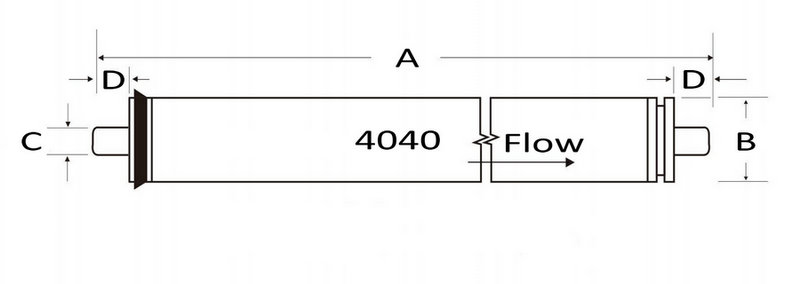

    Element Dimensions

    Model

    Length A

    inch(mm)

    Diameter B

    inch(mm)

    Permeate tube

    inner diameter C

    inch(mm)

    Permeate tube

    Extension D

    inch(mm)

    4040

    40(1,016)

    3.9(99)

    0.75(19)

    1.04(26.5)

    Operating and Cleaning Limits

    Maximum Operating Pressure

    600 psi (41 bar)

    Maximum Operating Temperature

    45°C (113°F)

    Maximum Chlorine Concentration

    0.1 ppm

    pH Range, Continuous

    2-11

    pH Range, Cleaning

    1-13

    Maximum Feed SDI (15 mins)

    5

    Maximum Element Pressure Drop

    15 psi (1 bar)

    Maximum Feed Flow

    3.6 m3/h

    Minimum Ratio of Concentrate to Permeate Flow for Each Element

    5:1

    * The limits shown above are for general applications. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane element.
