Economical equivalents with quick delivery for membrane replacement of your water and wastewater treatment projects.

Products >> Industrial RO Membrane >> Brackish Water RO Membrane

  • BW30HR-440 Equivalent
BW30HR-440 Equivalent

BW30HR-440 Equivalent

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: DuPont DOW Filmtec BW30HR-440, BW30HR440

General Information

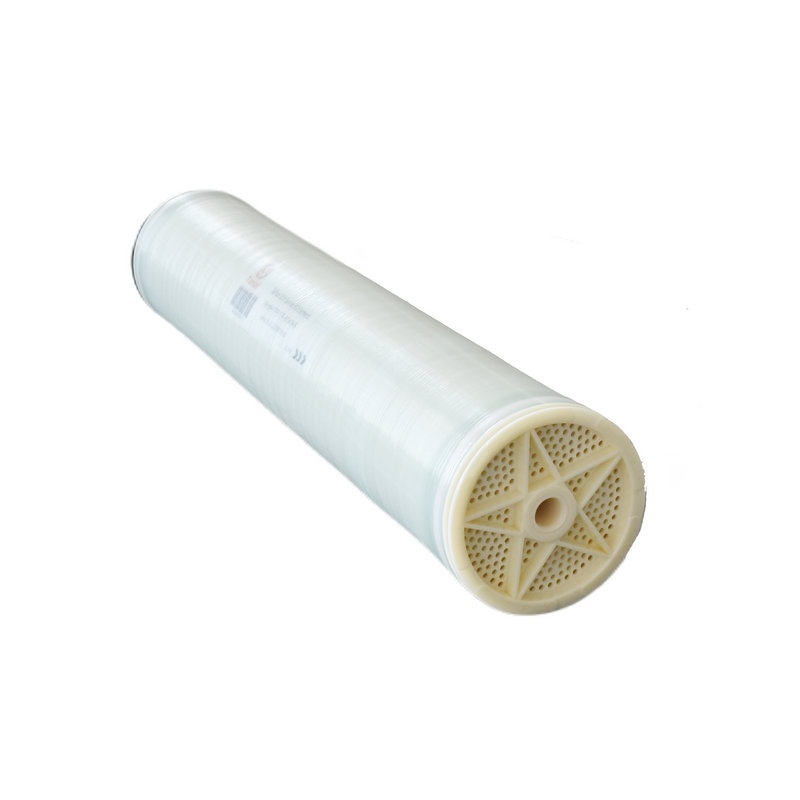

TFBW-8040-440HR is manufactured as an equivalent, replacement, alternative, retrofit, analogue, derivative and substitution for DuPont DOW Filmtec BW30HR-440 (BW30HR440) RO (reverse osmosis) membrane.
TFBW-8040-440HR reverse osmosis membrane elements are developed for brackish water treatment, ideal for reverse osmosis plant managers and operators dealing with brackish water with pre-treatment.
This reverse osmosis membrane element provides consistency, high permeate water quality, high performance and productivity, and long service life.

Features & Advantages

  • Provides high-quality permeate water
  • Stable salt rejection rate and high permeate flow rate
  • Optimized design, good resistance to fouling results in long service life
  • High chemical tolerance for cleaning with highly effective cleaning performance
  • Simple and economical element replacement

Applications

  • Industrial pure water
  • Industrial wastewater reuse
  • Slightly contaminated water

Specifications

  • Configuration: Spiral wound element
  • Membrane Polymer: Polyamide thin-film composite

Performance

Element Model

Membrane Active Area
ft
2 (m2)

Feed Spacer
mil
 (mm)

Permeate Flow Rate*
GPD (m3/d)

Stabilized Salt Rejection**

Minimum Salt Rejection

TFBW-8040-440HR

440 (41)

28 (0.712)

13,000 (49.2)

99.7%

99.5%

Standard test conditions:
The above performance is initial(data record after 30 minutes of operation), based on the following conditions:
2,000 ppm NaCl solution
225 psi (15.5 bar) operating pressure
25°C (77°F) operating temperature
15% permeate recovery
7.5-8 pH range
*Permeate flow for individual elements may vary but will be no more than ±15%.
**Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending on feed water characteristics and operating conditions.
Element Dimensions
DuPont DOW Filmtec BW30HR-440 RO Membrane Element Equivalent Dimensions

Length A
inch (mm)

Diameter B
inch (mm)

Permeate tube inner diameter C inch (mm)

40 (1,016)

7.9 (201)

1.125 (28.6)

Operating and Cleaning Limits

Maximum Operating Pressure

600 psi (41 bar)

Maximum Operating Temperature

45°C (113°F)

Maximum Chlorine Concentration

0.1 ppm

pH Range, Continuous

2-11

pH Range, Cleaning

1-13

Maximum Feed SDI (15 mins)

5

Maximum Element Pressure Drop

15 psi (1 bar)

Maximum Feed Flow

17 m3/h

Minimum Ratio of Concentrate to Permeate Flow for Each Element

5:1

The limits shown above are for general applications. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane element.
