Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Koch TARGA II 10072-35 0720709, TARGAII10072-35

General Information

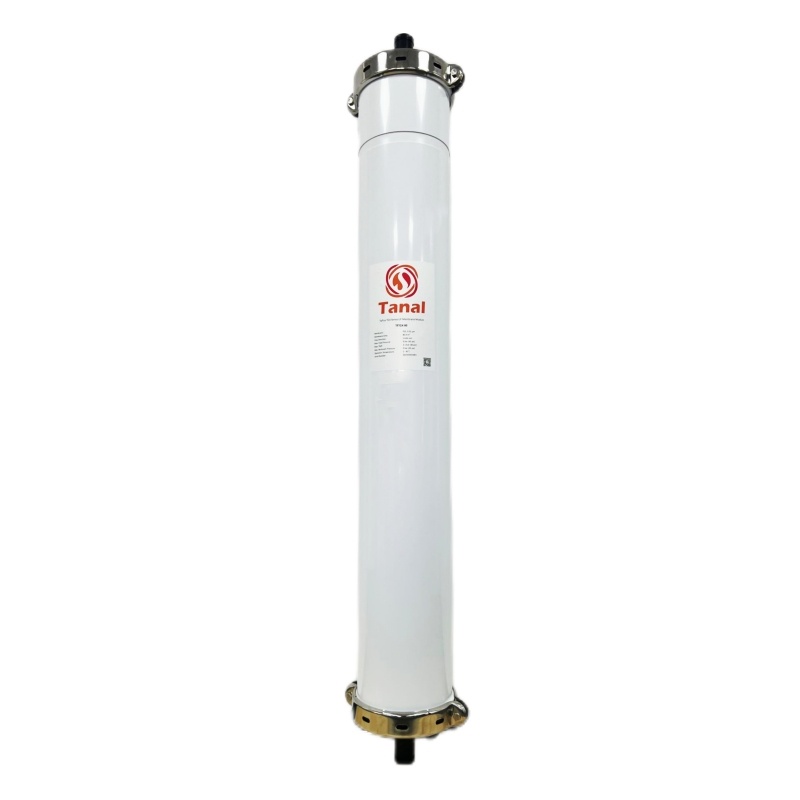

TFTGX-80 is manufactured as the direct equivalent, replacement, alternative, retrofit and analogue to Koch TARGA II 10072-35 hollow fiber ultrafiltration cartridge.
TaFlux TGX series UF membrane modules TFTGX-80 are designed and manufactured as equivalents, which are used for production of process, potable water and wastewater. Major applications are the filtration of surface water, potable water, industrial wastewater and seawater.
TARGA II 10072-35 equivalent ultrafiltration modules use new-generation naturally hydrophilic PES hollow fiber ultra-filtration membrane with excellent performance. The mode of operation is feed-and-bleed with a minor cross flow or dead-end with regular backwash (with filtrate only) and chemically enhanced backwash..

Features

• Uniform pore size of 0.02 μm
• New-generation naturally hydrophilic polyethersulfone membrane
• High performance and very good anti-fouling characteristic
• Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
• Membrane filtration provides 99.9999% (LOG 6) reduction of bacteria (Pseudomonas diminuta) and 99.99% (LOG 4) reduction of virus (MS2 colifages) by mechanical means.

Advantages

• High quality raw material
• High thermal and chemical solvent resistance
• Less energy needed by extra high permeability
• High chemical tolerance for cleaning
• Optimized design with high resistance to fouling
• Economical equivalent modules for direct replacement of Koch TARGA II 10072-35

Applications

• Surface water
• Potable water
• Seawater desalination
• Pre-treatment of industrial water

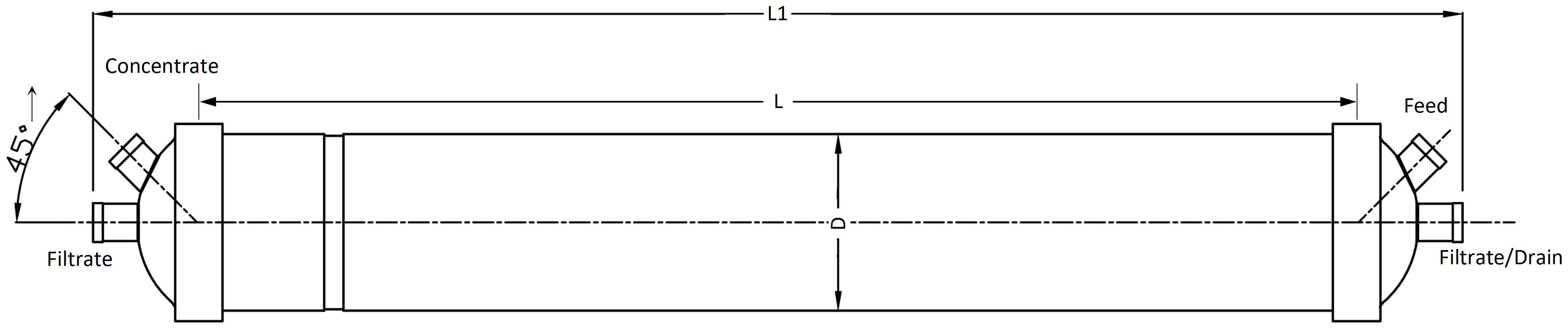

Module Dimensions

Model	L (mm/inch)	D (mm/inch)
TFTGX-80	1829/72	273/10.75

Specifications
