Equivalent, replacement, alternative, analog, retrofit, analogue:  Pentair X-Flow HFS 60, HFS60

General Information

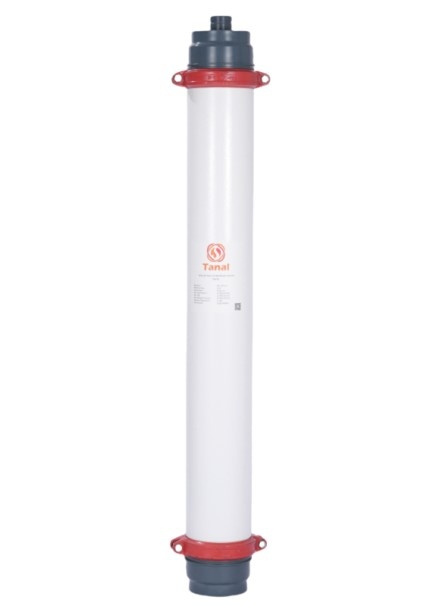

TFHFS60V ultrafiltration membrane module is designed and manufactured as equivalent to replace Pentair X-Flow HFS 60 (HFS60) tight UF membrane module, which is used for for the removal of colloidal silica from surface water and endotoxin from pure water. Major applications are the filtration of surface water and industrial pure water. TFHFS60V ultrafiltration module uses naturally hydrophilic PES hollow fiber ultra-filtration membrane with excellent performance.
The mode of operation is feed-and-bleed with a minor cross flow or dead-end with regular backwash (with filtrate only) and chemically enhanced backwash.

Features

• MWCO of 10 kDa on dextranes
• Microporous symmetric structure
• New-generation naturally hydrophilic polyethersulfone membrane
• Designed for silica retention; typical > 99.8% for colloidal silica (tested on surface water containing 10 mg/l total silica and 1 mg/l colloidal silica)
• Typical permeate quality SDI<3, turbidity <0,1 NTU

Advantages

• High quality raw material
• High thermal and chemical solvent resistance
• High chemical tolerance for cleaning
• Optimized design, high resistance to fouling
• Economical equivalent module for direct replacement of Pentair X-Flow HFS 60 tight UF membrane in vertical configuration

Applications

• Surface water
• Potable water
• Pharmaceutical water

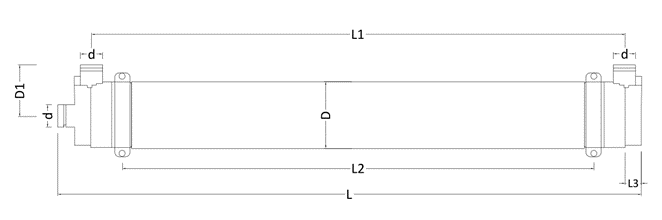

Module Dimensions

Specifications
