Products >> Hollow Fiber UF Membrane Module >> PES UF Membrane Module

  • Aquaflex 40 Equivalent

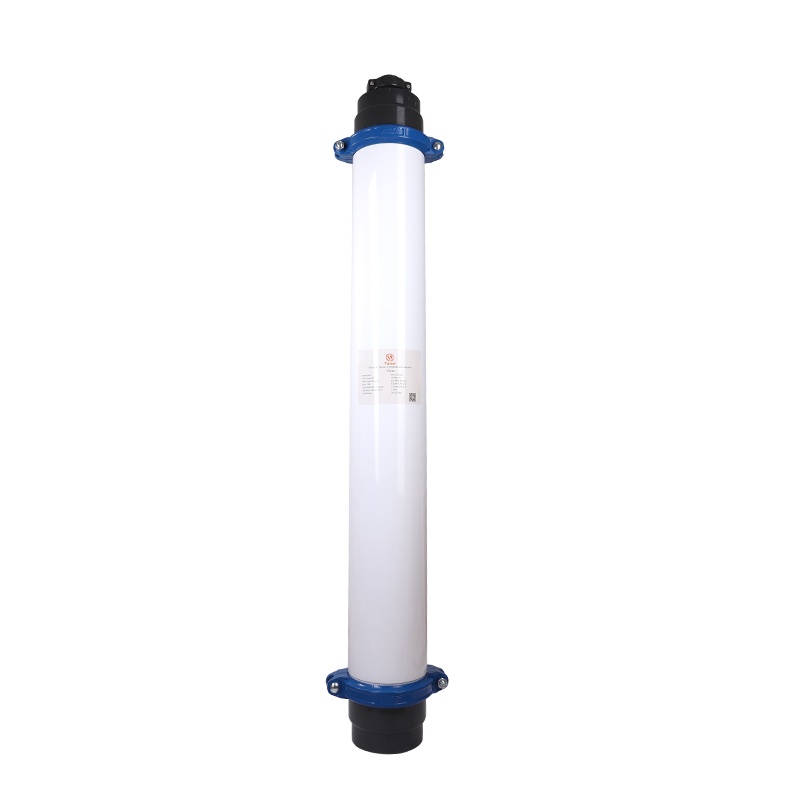

Aquaflex 40 Equivalent

Aquaflex 40 Equivalent

Equivalent, replacement, alternative, analog, retrofit, analogue: Pentair X-Flow Aquaflex 40, Aquaflex40

General Information

TFAF40 is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Pentair X-Flow Aquaflex 40 (Aquaflex40) UF membrane module, which is an ultrafiltration module, used for production of process, potable and wastewater. Major applications are the filtration of surface water, potable water, industrial wastewater and municipal effluent. TFAF40 uses naturally hydrophilic PES hollow fiber ultra-filtration membrane with excellent performance, so customers are using many of them as ultrafiltration (UF) module equivalents.
The mode of operation is feed-and-bleed with a minor cross flow or dead-end with regular backwash (with filtrate only) and chemically enhanced backwash.

Features

  • A nominal pore size of 0.02 μm
  • Microporous symmetric structure
  • Naturally hydrophilic membrane composed of a blend of polyethersulfone and polyvinylpyrrolidone
  • High performance and very good anti-fouling characteristic
  • Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
  • Membrane filtration provides 99.9999% (LOG 6) reduction of bacteria (Pseudomonas diminuta) and 99.99% (LOG 4) reduction of virus (MS2 colifages) by mechanical means.

Advantages

  • High quality raw material
  • High thermal and chemical solvent resistance
  • High chemical tolerance for cleaning
  • Optimized design, high resistance to fouling
  • Direct and economical module replacement

Applications

  • Surface water
  • Potable water
  • Seawater desalination
  • Pre-treatment of industrial water
  • Industrial wastewater
  • Municipal sewage

Module Dimensions

Pentair X-Flow Aquaflex 40 UF Membrane Element Equivalent Module Dimensions

Model

L (mm/inch)

L1(mm/inch)

L2 (mm/inch)

L3(mm/inch)

D (mm/inch)

D1 (mm/inch)

Feed, Filtrate, concentrate
connection d (mm/inch)

TFAF40

1,801/70.91

1,638/64.49

1,527.5/60.14

55.5/2.18

200/7.9

155/6.1

73.2/2.88

Physical and Operating Specifications

Specifications

Parameters

Model

TFAF40

Effective membrane area (m²/ft²)

40/430

Fiber diameter (mm/inch)

0.8/0.031

Membrane material

PES (polyether sulfone)

Housing material

PVC

Flow distributor material

PVC

Potting material

Polyurethane resin

Max. system pressure

300 kPa (43 psi)

Max. trans-membrane pressure

300 kPa (43 psi)

Max. backwash pressure

300 kPa (43 psi)

Temp. range

0-40℃ (32-104°F)

pH-Continuous operation @ 25℃

2-12

pH-CIP @ 25℃

1-13

Dry weight of membrane module

25 kg/55 lbs

Wet weight filled with water

55 kg/121 lbs
