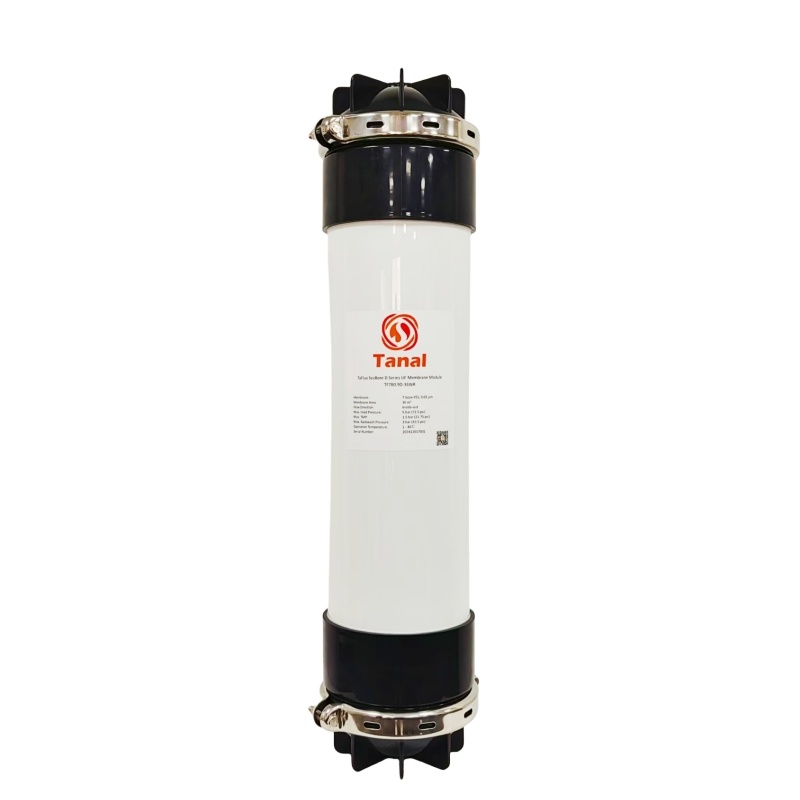

XL 0.9 MB 38 W Equivalent
- Product No.:TF7B0.9D-38W
Equivalent, replacement, alternative, analog, retrofit, analogue: DuPont Inge dizzer XL 0.9 MB 38 W VK-0070, dizzer XL 0.9MB 38W
General Information
TF7B0.9D-38W is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace DuPont Inge dizzer XL 0.9 MB 38 W (dizzer XL 0.9MB 38W) VK-0070 UF membrane module.TF7B0.9D-38W ultrafiltration membrane modules are designed and manufactured as equivalents, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow direction. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced ultrafiltration technology, which makes these ultrafiltration membrane modules the most robust PES (polyether sulfone) UF membrane on the market.
The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.
Features
- A nominal pore size of 0.02 μm for optimal removal of particles, bacteria, and viruses
- Inside-out flow direction without air scouring
- PES membrane fibers of 7 bores
- Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
Advantages
- Extremely high mechanical strength with no fiber breakage
- High chemical tolerance
- High-quality filtrate by reliable blocking of microorganisms and viruses
- Minimum operating costs and efficient backwash
- Direct and economical module replacement for plug-and-play
Applications
- Surface water
- Potable water
- Seawater desalination
- Pre-treatment of industrial water
- Industrial wastewater
- Municipal sewage
Module Dimensions
Model |
Total length L (mm/inch) |
Length feed connectors L1 (mm/inch) |
Length without end caps L2 (mm/inch) |
Length top feed to filtrate connector L3 (mm/inch) |
End cap diameter D (mm/inch) |
Diameter without end caps D1 (mm/inch) |
Connector length W (mm/inch) |
Feed, Filtrate connector (d)(mm/inch) |
TF7B0.9D-38W |
1,180/46.46 |
1,100/43.31 |
985/38.78 |
190/7.48 |
295/11.61 |
250/10 |
55/2.17 |
50.8/2 |
Specifications
Specifications |
Parameters |
Model |
TF7B0.9D-38W |
Effective membrane area (m²/ ft²) |
38/410 |
Fiber ID/OD |
0.9/4 mm (0.04/0.16 inch) |
Membrane material |
Modified PES (polyether sulfone), 7 bores |
Flow direction |
Inside-out |
Pore size |
0.02 μm |
Housing material |
UPVC |
End cap material |
UPVC |
Clamp material |
Stainless Steel |
Sealing material |
EPDM |
Potting material |
Epoxy resin |
Feed/filtrate connector |
DN50 |
Weight (kg/lbs.) |
35/77 |
Operating and Cleaning Limits
Specifications |
Parameters |
Temperature range |
1-40℃ (34-104°F) |
Max. rate of temperature change (per minute) |
5℃ (9°F) |
Max. feed pressure |
5 bar (72.5 psi) |
Max. rate of pressure change (per second) |
0.5 bar (7.25 psi) |
Max. trans-membrane pressure |
1.5 bar (1.5/21.75 psi) |
Max. backwash pressure |
3 bar (40 psi) |
Filtration flux |
60-180 l/m2h (35-105 gfd) |
Backwash/forward flush maximum |
230-300 l/m2h (135-175 gfd) |
pH-continuous operation @ 25℃ |
2-11 |
pH-CIP @ 25℃ |
1-13 |
Hypochlorite (NaOCl) for cleaning |
50 to 200 ppm |
Hydrogen peroxide for cleaning |
100 to 500 ppm |
