General Information

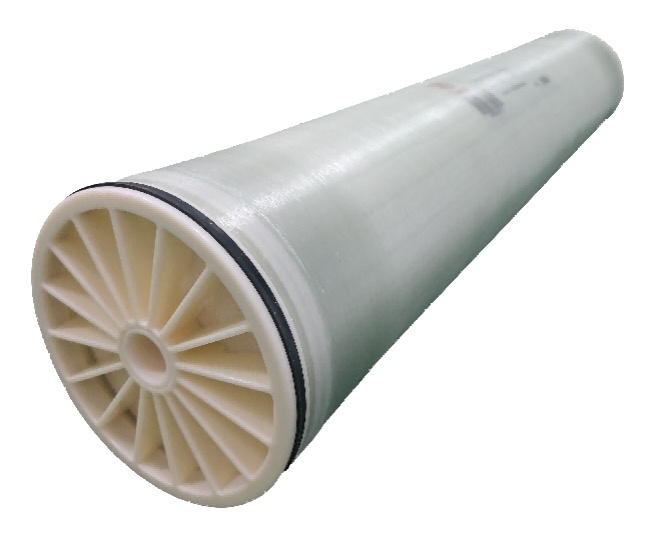

TFXLP-8040-34 is manufactured as an equivalent, replacement, alternative, retrofit, analogue to Hydranautics ESPA4-LD HP (ESPA4LDHP) RO membrane element.
Hydranautics ESPA4-LD HP equivalent reverse osmosis membrane elements TFXLP-8040-34 are developed for energy saving for water treatment in low TDS environments, ideal for the desalination of municipal water, groundwater with less than 1,000 ppm.
TFXLP-8040-34 reverse osmosis membrane element provides reliable performance and long service life at an extra low feed pressure, and can be widely used in pure water preparation and related industries.

Features & Advantages

  • Extreme low working pressure
  • Energy saving
  • Economical efficiency
  • Economical equivalent element for direct replacement of Hydranautics ESPA4-LD HP

Applications

  • Potable water
  • Commercial water system
  • Industrial process water

Specifications

  • Configuration: Spiral wound element
  • Membrane Polymer: Polyamide thin-film composite

Performance

Element Model

Membrane Active Area

ft2 (m2)

Feed Spacer

Mil (mm)

Permeate Flow Rate*

GPD (m3/d)

Stabilized Salt Rejection**

Minimum Salt Rejection

TFXLP-8040-34

400 (37.2)

34 (0.864)

11,000 (41.6)

99.2%

99.0%

Standard test conditions:
The above performance is initial (data record after 30 minutes of operation), based on the following conditions:
500 ppm NaCl solution
100 psi (7 bar) operating pressure
25°C (77°F) operating temperature
15% permeate recovery
7.5-8 pH range
*Permeate flow for individual elements may vary but will be no more than ±15%.
**Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending on feed water characteristics and operating conditions.
Element Dimensions
Hydranautics ESPA4-LD HP Equivalent RO Membrane Element Dimensions

Model

Length L
inch (mm)

Diameter D
inch (mm)

Permeate tube inner diameter d
inch (mm)

8040

40 (1,016)

7.9 (201)

1.125 (28.6)

* Each 8040 membrane element supplied with one interconnector (coupler) with four O-rings.

All 8040 elements fit nominal 8.0 inch (203.2 mm) I.D. pressure vessels.

Operating and Cleaning Limits

Maximum Operating Pressure

600 psi (41 bar)

Maximum Operating Temperature

45°C (113°F)

Maximum Chlorine Concentration

0.1 ppm

pH Range, Continuous

2 - 11

pH Range, Cleaning

1 - 13

Maximum Feed SDI (15 mins)

5

Maximum Element Pressure Drop

15 psi (1 bar)

Maximum Feed Flow

17 m3/h

The limits shown above are for general applications. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane element.

We offer various RO membrane element equivalents. If you and your customer accept Hydranautics ESPA4-LD HP equivalent RO membrane element, please send us an inquiry now.
