Products >> Industrial RO Membrane >> TaFlux ULP Series RO Membrane

ESPA2-LD-4040 Equivalent

Product No.：TFULP-4040PRO-34
Online Inquiry

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: Hydranautics ESPA2-LD-4040, ESPA2LD4040

General Information

TFULP-4040PRO-34 is manufactured as an equivalent, replacement, alternative, retrofit, analogue to replace Hydranautics ESPA2-LD-4040 RO membrane element.

Hydranautics ESPA2-LD-4040 equivalent reverse osmosis membrane elements TFULP-4040PRO-34 are developed for energy saving for water treatment in various industries and applications, ideal for reverse osmosis plant managers and operators dealing with low to medium TDS level water with essential pre-treatment.

TFULP-4040PRO-34 reverse osmosis membrane element provides consistency, high-quality filtrate, reliable performance, and long service life at a low feed pressure, which saves energy and reduces operation costs.

Features & Advantages

High permeability
Anti-fouling structure design
Good consistency and reliability
Economical equivalent module for direct replacement of Hydranautics ESPA2-LD-4040 RO Membrane Element

Applications

Municipal drinking water
Industrial process water
Dual water supply system
Pure water preparation plant

Specifications

Configuration: Spiral wound element
Membrane Polymer: Polyamide thin-film composite

Performance

Element Model

Membrane Active Area

ft² (m²)

Feed Spacer

Mil (mm)

Permeate Flow Rate^*

GPD (m³/d)

Stabilized Salt Rejection^**

Minimum Salt Rejection

TFULP-4040PRO-34

90 (8.4)

34 (0.864)

2,200 (8.3)

99.5%

99.3%

Standard test conditions:

The above performance is initial (data record after 30 minutes of operation), based on the following conditions:

1,500 ppm NaCl solution

150 psi (10.3 bar) operating pressure

25°C (77°F) operating temperature

15% permeate recovery

7.5-8 pH range

*Permeate flow for individual elements may vary but will be no more than ±15%.

**Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending on feed water characteristics and operating conditions.

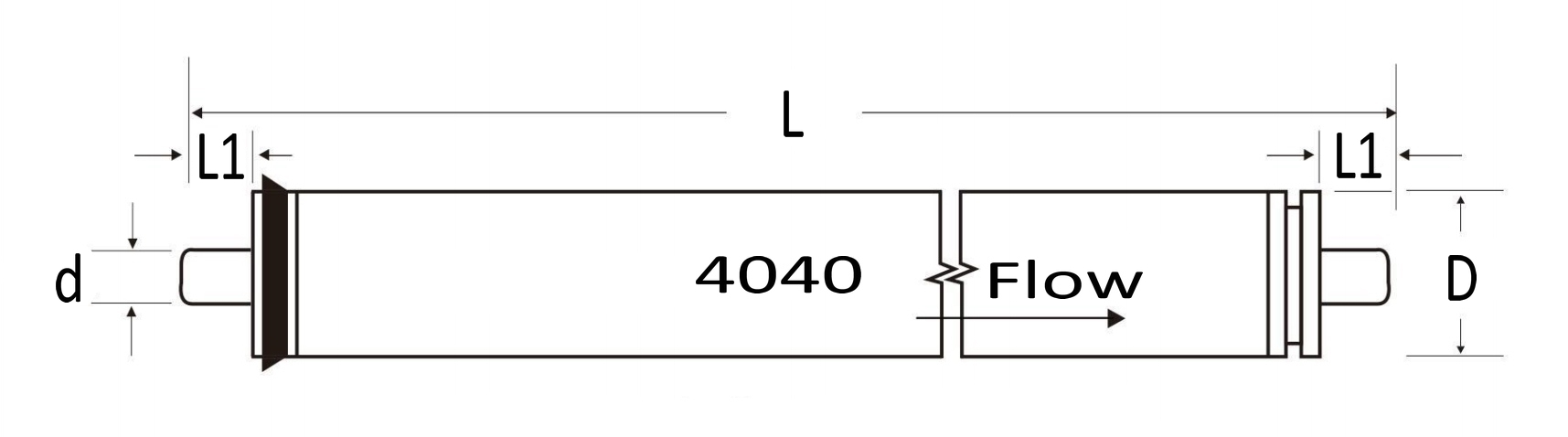

Element Dimensions

Size

Length L

inch (mm)

Diameter D

inch (mm)

Permeate tube

inner diameter d

inch (mm)

Permeate tube

Extension L1

inch (mm)

4040

40 (1,016)

3.9 (99)

0.75 (19)

1.04 (26.5)

Operating and Cleaning Limits

Maximum Operating Pressure	600 psi (41 bar)
Maximum Operating Temperature	45°C (113°F)
Maximum Chlorine Concentration	0.1 ppm
pH Range, Continuous	2 - 11
pH Range, Cleaning	1 - 13
Maximum Feed SDI (15 mins)	5
Maximum Element Pressure Drop	15 psi (1 bar)
Maximum Element Pressure Drop	15 psi (1 bar)
Minimum Feed Flow	3.6 m³/h

The limits shown above are for general applications. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane element.

We offer various RO membrane element equivalents. If you and your customer accept Hydranautics ESPA2-LD-4040 equivalent RO membrane element, please send us an inquiry now.
