Economical equivalents with quick delivery for membrane replacement of your water and wastewater treatment projects.

Products >> Hollow Fiber UF Membrane Module >> PES UF Membrane Module

  • ZW700B-10060/UF8/7B/S/0.9/60 Equivalent

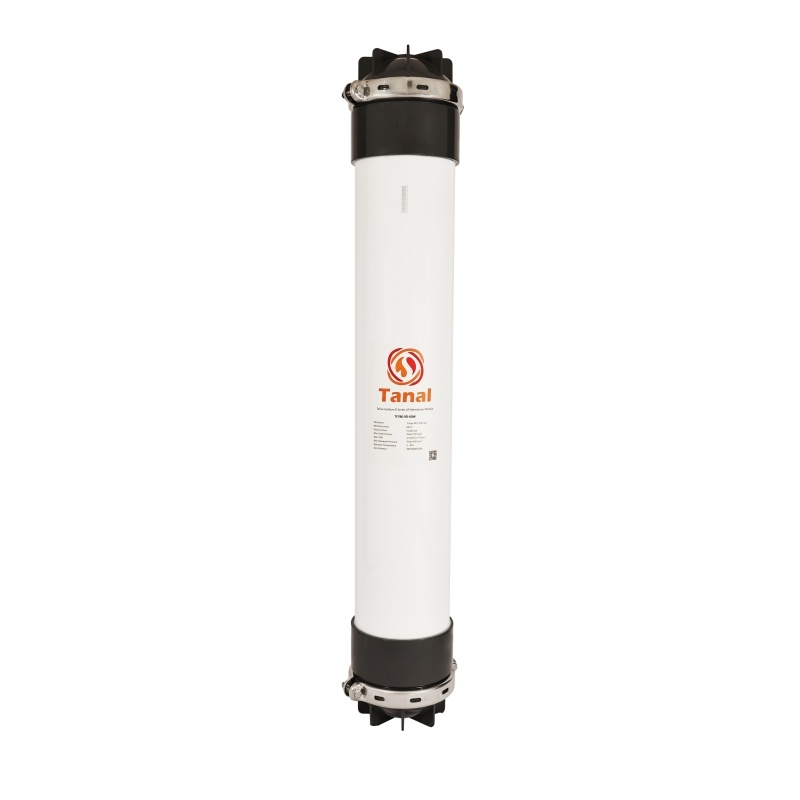

ZW700B-10060/UF8/7B/S/0.9/60 Equivalent

ZW700B-10060/UF8/7B/S/0.9/60 Equivalent

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Suez GE ZeeWeed 700B SevenBore ZW700B-10060/UF8/7B/S/0.9/60, ZW700B10060/UF8/7B/S/0.9/60 UF membrane module

General Information

TF7B0.9ZW-60L is manufactured as the quivalent, replacement, alternative, retrofit and analogue to Suez GE ZeeWeed 700B SevenBore ZW700B-10060/UF8/7B/S/0.9/60, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, industrial wastewater and municipal sewage. TF7B0.9ZW-60L ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow direction. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced ultrafiltration technology, which makes TF7B0.9ZW-60L ultrafiltration membrane modules the most robust PES (polyether sulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

  • A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
  • Inside-out flow direction without air scouring
  • PES membrane fibers of 7 bores
  • Typical filtrate quality SDI < 3, turbidity < 0.1 NTU

Advantages

  • Extremely high mechanical strength with no fiber breakage
  • High chemical tolerance
  • High-quality filtrate by reliable blocking of microorganisms and viruses
  • Minimum operating costs and efficient backwash
  • Economical equivalent module for direct replacement of Suez GE ZeeWeed 700B ZW700B-10060/UF8/7B/S/0.9/60 for plug-and-play

Applications

  • Surface water
  • Potable water
  • Sea water desalination
  • Pre-treatment of industrial water
  • Industrial wastewater
  • Municipal sewage

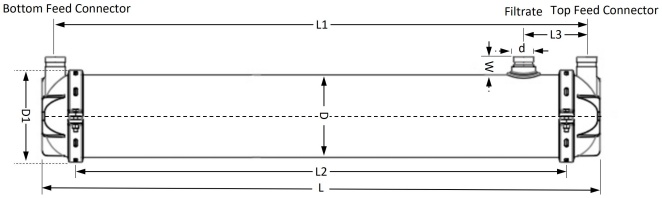

Module Dimensions

Suez GE ZeeWeed 700B ZW700B-10060/UF8/7B/S/0.9/60 Equivalent Module Dimensions

Model

Total length L (mm/inch)

Length feed to concentrate L1 (mm/inch)

Length without end caps L2 (mm/inch)

Length concentrate to filtrate connector L3 (mm/inch)

End cap diameter D (mm/inch)

Diameter without end caps D1 (mm/inch)

Distance feed to module center axis W (mm/inch)

TF7B0.9ZW-60L

1,687/66.4

1,599/62.9

1,500/59.1

191/7.52

320/13

250/10

179/7.05

Specifications

Specifications

Parameters

Model

TF7B0.9ZW-60L

Effective membrane area (m²/ ft²)

60/645.9

Fiber ID/OD

0.9/4 mm (0.04/0.16 inch)

Membrane material

Modified PES (polyether sulfone), 7 bores

Flow direction

Inside-out

Pore size

0.02 μm

Housing material

UPVC

Clamp material

Stainless Steel

Sealing material

EPDM

Potting material

Epoxy resin

Feed/concentrate connection

Victaulic

Filtrate connection

Victaulic

End caps diameter

2 inch OD

Weight (kg/lbs.)

31.5/69

Operating and Cleaning Limits

Specifications

Parameters

Temp. range

1-40℃ (34-104°F)

Max. feed pressure

5 bar (72.5 psi)

Max. trans-membrane pressure

2.5 bar (36 psi)

Max. backwash pressure

3 bar (40 psi)

Backwash/forward flush maximum

250 l/m2h (150 gfd)

pH-continuous operation @ 25℃

2-11

pH-CIP @ 25℃

1-13

Hypochlorite (NaOCl) for cleaning

50 to 200 ppm

Hydrogen peroxide for cleaning

100 to 200 ppm


We offer various UF membrane module equivalents. If you and your customer accept Suez GE ZeeWeed 700B ZW700B-10060/UF8/7B/S/0.9/60 equivalent ultrafiltration membrane module, please send us an inquiry now.
