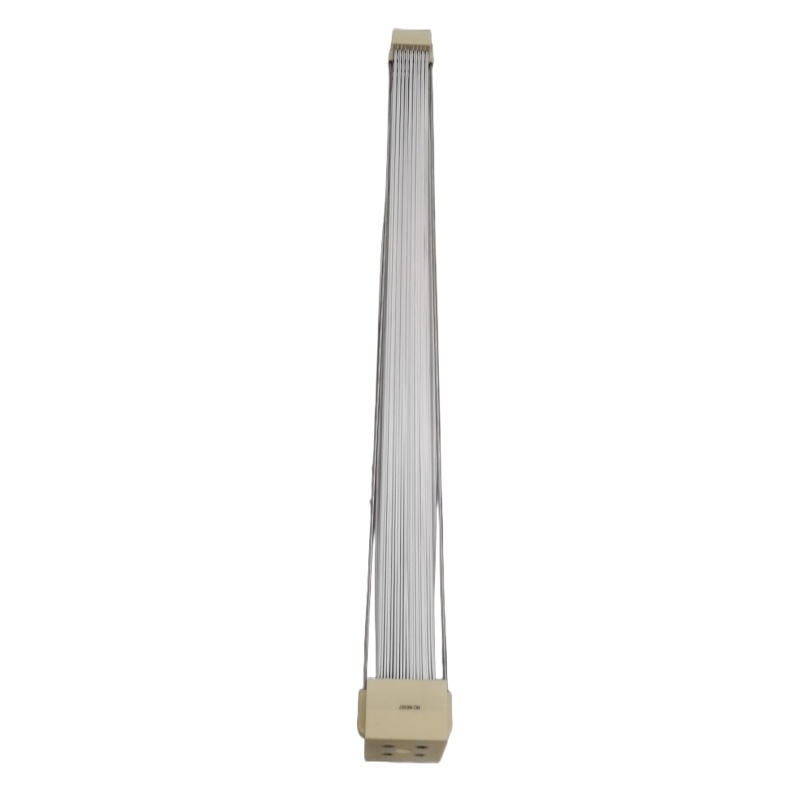

SPMW-13B12 Equivalent

Product No.：TFMW-B12B
Online Inquiry

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: Sumitomo POREFLON MBR module SPMW-13B12, SPMW13B12

General Information

TFMW-B12B is manufactured as an equivalent, replacement, alternative, retrofit, analogue and derivative to replace Sumitomo POREFLON SPMW-13B12 MBR membrane module.

This PTFE hollow fiber MBR membrane module is an MBR membrane module made of PTFE hollow fiber for critical industrial wastewater and municipal sewage treatment. Consisting of uniform PTFE hollow fiber membrane, PTFE hollow fiber MBR modules provide excellent physical barrier to suspended solids, bacteria and other pathogens. The uniform pore size distribution ensures high permeability and sustainable high-quality filtrate.
The new generation of PTFE hollow fiber MBR modules for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.
These submerged PTFE hollow fiber membrane modules are providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the globe.

Membrane Characteristics

PTFE material with best chemical resistance and oil resistance
High tensile strength by reinforced membrane
Compact design
Hydrophilic treatment and fouling resistance

Advantages

Suitable critical applications
Extreme long service life to reduce OPEX
Smaller installation space to to reduce CAPEX
Economical equivalent module for direct replacement of Sumitomo POREFLON MBR module SPMW-13B12

Applications

Industrial wastewater
Municipal sewage
Submerged filtration
Kitchen biogas slurry
Chemical wastewater
Electroplating wastewater
Dyeing wastewater
Landfill leachate

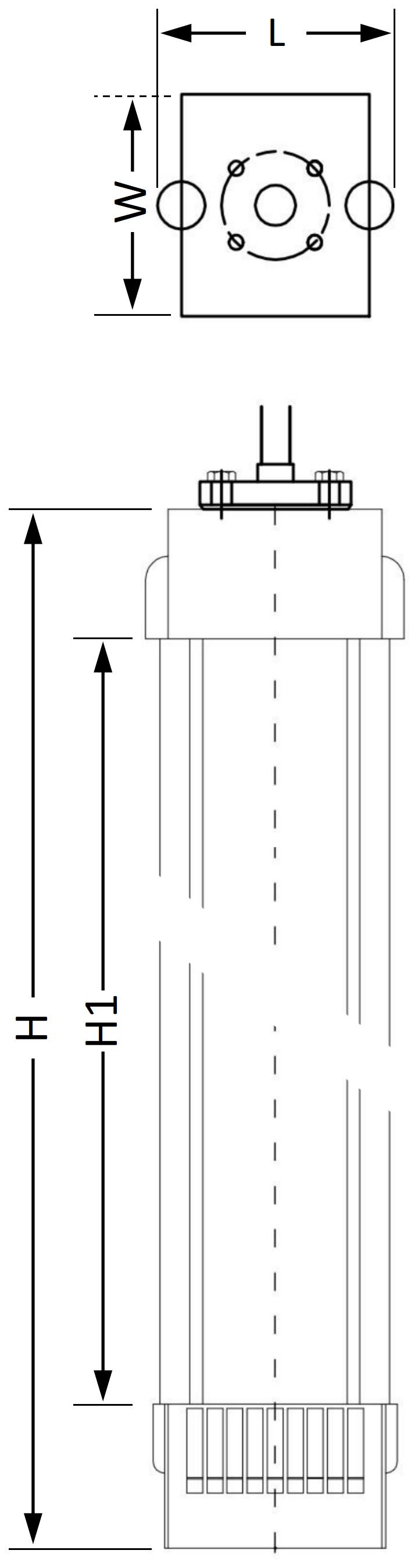

Module Dimensions

Sumitomo POREFLON MBR Module SPMW-13B12 Equivalent

Model

H (mm/inch)

H1^*

(mm/inch)

L (mm/inch)

W (mm/inch)

TFMW-B12B

2,410/94.88

2,220/87.4

164/6.46

154/6.06

* Height can be customized according to different projects.

Specifications

Model	TFMW-B12B
Membrane Surface Area (m²/ft²)	12/130
Pore Size (μm)	0.1 μm
Membrane Material	Hydrophilic PTFE
Fiber ID (mm/inch)	1.1/0.04
Fiber OD (mm/inch)	2.3/0.09
Flow Direction	Outside-in
Cap Material	ABS
Joint Nut Material	SS 316L
Sealing Material	Epoxy resin
Supporting Bar Material	SS 316L
Module Weight (kg/lb)	13.5/30

Operating and Cleaning Limits

Flux (LMH)	8-106^**
Flow Type	Negative pressure suction
Max. TMP (MPa/psi)	-0.06/-8.8
Backwash Type	Permeate backwash
Max. Backwash Flux (LMH)	200
Max. Backwash Pressure (MPa/psi)	0.1/14.5
Operating Temperature (℃/°F)	5-50/41-122
Recommended pH Range	0 - 14
Max Active Chlorine (ppm)	1,000

** Flux design depends on the feed water quality and operation procedure.

We offer various MBR membrane module equivalents. If you and your customer accept Sumitomo POREFLON SPMW-13B12 MBR membrane equivalent, please send us an inquiry now.
