Economical equivalents with quick delivery for membrane replacement of your water and wastewater treatment projects.

Products >> Hollow Fiber MBR Module >> PTFE MBR Membrane Module

  • SPMW-11B6 Equivalent
SPMW-11B6 Equivalent

SPMW-11B6 Equivalent

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: Sumitomo POREFLON MBR module SPMW-11B6, SPMW11B6

General Information

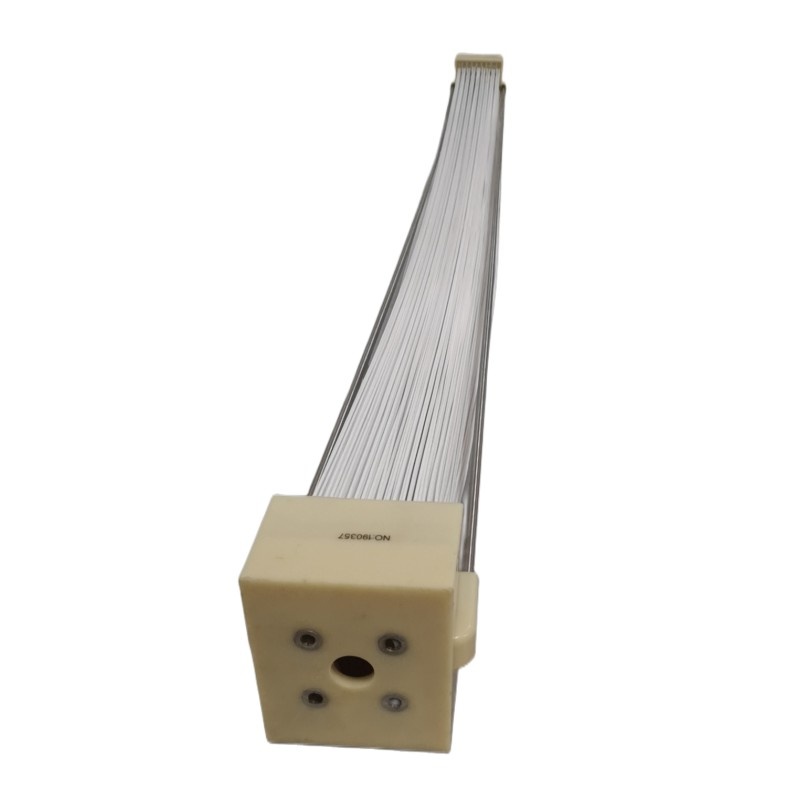

TFMW-B6S is manufactured as an equivalent, replacement, alternative, retrofit, analogue and derivative to replace Sumitomo POREFLON SPMW-11B6 MBR membrane module.
This PTFE hollow fiber MBR membrane module is an MBR membrane module made of PTFE hollow fiber for critical industrial wastewater and municipal sewage treatment. Consisting of uniform PTFE hollow fiber membrane, PTFE hollow fiber MBR modules provide excellent physical barrier to suspended solids, bacteria and other pathogens. The uniform pore size distribution ensures high permeability and sustainable high-quality filtrate.
The new generation of PTFE hollow fiber MBR modules for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.
These submerged PTFE hollow fiber membrane modules are providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the globe.

Membrane Characteristics

PTFE material with best chemical resistance and oil resistance
High tensile strength by reinforced membrane
Compact design
Hydrophilic treatment and fouling resistance

Advantages

Suitable critical applications
Extreme long service life to reduce OPEX
Smaller installation space to to reduce CAPEX
Economical equivalent module for direct replacement of Sumitomo POREFLON MBR module SPMW-11B6

Applications

Industrial wastewater
Municipal sewage
Submerged filtration
Kitchen biogas slurry
Chemical wastewater
Electroplating wastewater
Dyeing wastewater
Landfill leachate

Module Dimensions

Sumitomo POREFLON MBR Module SPMW-11B6 Equivalent

Model

H (mm/inch)

H1*

(mm/inch)

L (mm/inch)

W (mm/inch)

TFMW-B6S

1,300/51.18

1,110/43.7

164/6.46

154/6.06

* Height can be customized according to different projects.
Specifications

Model

TFMW-B6S

Membrane Surface Area (m2/ft2)

6/65

Pore Size (μm)

0.08 μm

Membrane Material

Hydrophilic PTFE

Fiber ID (mm/inch)

1.1/0.04

Fiber OD (mm/inch)

2.3/0.09

Flow Direction

Outside-in

Cap Material

ABS

Joint Nut Material

SS 316L

Sealing Material

Epoxy resin

Supporting Bar Material

SS 316L

Module Weight (kg/lb)

10/22

Operating and Cleaning Limits

Flux (LMH)

8-106**

Flow Type

Negative pressure suction

Max. TMP (MPa/psi)

-0.06/-8.8

Backwash Type

Permeate backwash

Max. Backwash Flux (LMH)

200

Max. Backwash Pressure (MPa/psi)

0.1/14.5

Operating Temperature (℃/°F)

5-50/41-122

Recommended pH Range

0 - 14

Max Active Chlorine (ppm)

1,000

** Flux design depends on the feed water quality and operation procedure.

We offer various MBR membrane module equivalents. If you and your customer accept Sumitomo POREFLON SPMW-11B6 MBR membrane equivalent, please send us an inquiry now.
