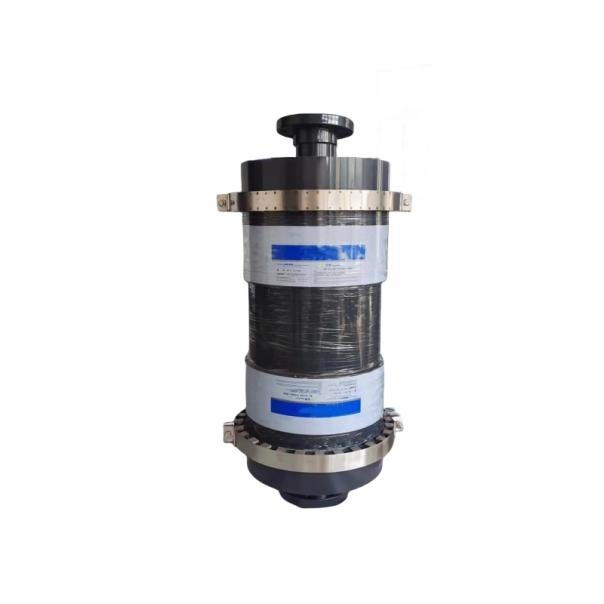

Liqui-Cel EXF-10x28 X50 Equivalent Membrane Contactor

Product No.：MCCL-12X28
Online Inquiry

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: 3M Liqui-Cel EXF-10x28 X50 membrane contactor

General Information

MCCL-12X28 is manufactured as an equivalent, replacement, alternative, retrofit and analogue to replace 3M Liqui-Cel EXF-10x28 X50 membrane contactor.
TaCel CO2 Liqui series membrane contactor MCCL-12X28 is developed and manufactured for carbon dioxide removal of boiler feed up water, replacing thermal contactor.
The working principle of 3M Liqui-Cel EXF-10x28 X50 equivalent membrane contactor:
TaCel CO2 Liqui series membrane contactor MCCL-12X28 uses microporous hollow fiber membrane to remove carbon dioxide from water. In a typical operation, water flows outside the hollow fibers, while inside of the hollow fibers are vacuum pumped or gas purged, or both are combined.
The hydrophobically treated hollow fiber membranes have many micro pores on the surface, which allow gas molecules to pass through, but can prevent water molecules from penetrating. Under the negative pressure of vacuum or gas purging, the dissolved gas in the water outside the hollow fiber membrane moves continuously to the inside of the hollow fiber membrane through the micro pores, and is taken away by the vacuum or purging gas, so as to achieve the purpose of removing dissolved carbon dioxide and other gases in water or other liquids. TaCel CO2 series membrane contactor MCCL-12X28 can also be used for membrane extraction, deamination and denitrification etc.

Features

Compact design for normal base construction with installation
Can be installed directly on ground, no need of high position installation.
Works under normal temperature, no need of hot steam for decarbon dioxideation.
Energy consumption comes from vacuum pump and sweep N₂
Modular design, can be extended very easily.

Advantages

Energy saving by low energy consumption
High removal efficiency for dissolve carbon dioxide, keep stable at 7 ppb of outlet water.
Small footprint to save CAPEX
Easy to install, operate and maintain for lower OPEX.
Economical equivalent membrane contactor for direct replacement of 3M Liqui-Cel EXF-10×28 X50

Applications

Food & beverage
Pharmaceuticals
Microelectronics & semiconductors
Gas separation
Inkjet printing
Hydrometallurgy
Coating
Boiler water
Water and wastewater treatment

Dimensions

Model	D (mm/inch)	L (mm/inch)	L1 (mm/inch)	W (mm/inch)	Liquid port	Vacuum port
MCCL-12X28	315/12.40	1,188/46.77	935/36.81	247/9.72	DN80 flange	DN25 flange

Specifications

Model	MCCL-12X28
Membrane material	Modified PP
Housing material	UPVC
Membrane area (m²)	105
Processing capacity (m³/h)	10 - 48
Weight (KG)	85
Liquid flow path	External flow
Standard removal rate	78% - 95%

Operating Limits

Quantity in series	≤ 4 pcs
Working temperature	5 - 40℃
Max. feed pressure	0.6 MPa (87 psi)
Working pH	5 - 9
Working surface tension	≥ 65 mN/m

Notice:
1. These Liqui-Cel EXF-10x28 X50 membrane contactor equivalents are only suitable for carbon dioxide removal of clean water, COD < 50 ppm, SS < 5 ppm.
2. Even if COD in water is less than 50 ppm, the surface tension may still be less than 65 mN/m, resulting in membrane infiltration. Therefore, the detection of surface tension is necessary before use.
3. The water should not contain oxidizing substances, such as hypochlorite, hydrogen peroxide, etc. ORP < 100 is required, otherwise the service life of the membrane conctactor will be affected.
4. When used for a long time, the organic and mineral substances in water will cause membrane fouling, which will affect the removal and hydrophobic properties of the membrane. It should be cleaned regularly and restored.
