Products >> Industrial RO Membrane >> Seawater RO Membrane

SW30XLE-440 Equivalent

Product No.：TFSW-8040-440
Online Inquiry

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution: DuPont DOW FilmTec SW30XLE-440, SW30XLE440

General Information

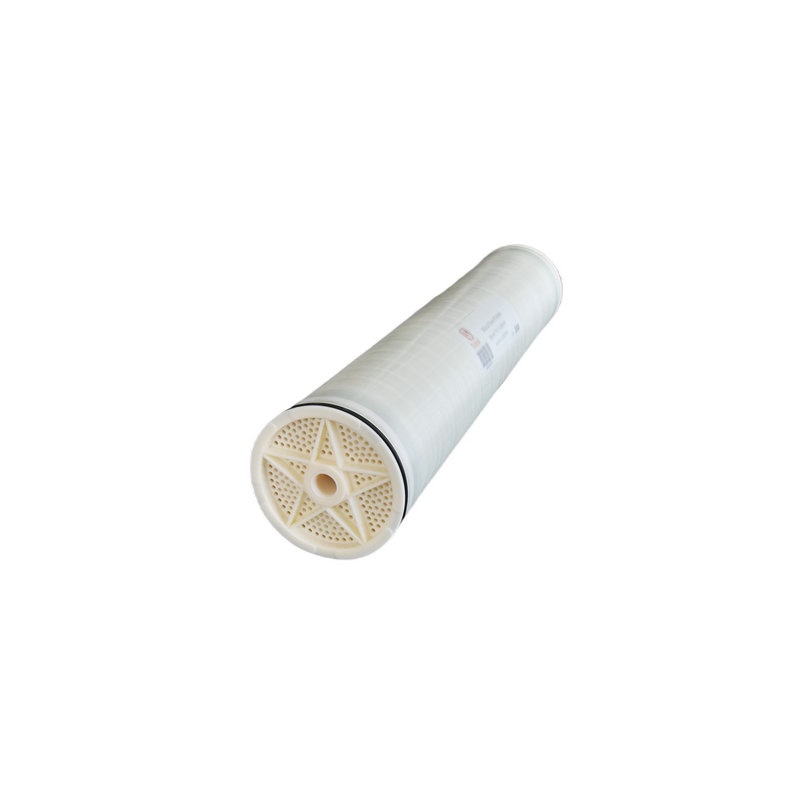

TFSW-8040-440 is manufactured as an equivalent, replacement, alternative, retrofit, analogue to DuPont DOW FilmTec SW30XLE-440 (SW30XLE440) RO membrane element.

SW30XLE-440 equivalent reverse osmosis membrane elements TFSW-8040-34 are developed for seawater treatment, offering high productivity while maintaining excellent salt rejection performance, to help reduce capital and operation cost of seawater desalination systems.
SW30XLE-440 equivalent reverse osmosis membrane element offers sustainable consistency, high rejection rate, low energy performance and lower lifecycle cost.

Features & Advantages

Stable salt rejection rate at high feed TDS
Higher permeate flow rate at lower operating fluxes
Lower operating cost through reduced energy consumption
Economical equivalent element for direct replacement of DuPont DOW FilmTec SW30XLE-440

Applications

Seawater desalination
Minimal or zero liquid discharge
Landfill leachate sewage treatment
High-salinity wastewater concentration
Other applications with feed TDS above 10,000 ppm

Specifications

Configuration: Spiral wound element
Membrane Polymer: Polyamide thin-film composite

Performance

Element Model

Membrane Active Area

ft² (m²)

Feed Spacer

mil (mm)

Permeate Flow Rate^*

GPD (m³/d)

Stabilized Salt Rejection^**

Minimum Salt Rejection

Boron Rejection

TFSW-8040-440

440 (41)

28 (0.712)

9,900 (37.5)

99.8%

99.65%

90%

Standard test conditions:

The above performance is initial (data record after 30 minutes of operation), based on the following conditions:

32,000 ppm NaCl, 5 ppm H₃BO₃ solutionn

800 psi (55 bar) operating pressure

25°C (77°F) operating temperature

8% permeate recovery

7.5-8 pH range

*Permeate flow for individual elements may vary but will be no more than ±15%.

**Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending on feed water characteristics and operating conditions.

Element Dimensions

Size

Length L

inch (mm)

Diameter D

inch (mm)

Permeate tube

inner diameter d

inch (mm)

Permeate tube

Extension L1

inch (mm)

8040^*

40 (1,016)

7.9 (201)

1.125 (28.6)

* Each 8040 membrane element supplied with one interconnector (coupler) with four O-rings.
All 8040 elements fit nominal 8.0 inch (203.2 mm) I.D. pressure vessels.

Operating and Cleaning Limits

Maximum Operating Pressure	1,200 psi (83 bar)
Maximum Operating Temperature	45°C (113°F)
Maximum Chlorine Concentration	0.1 ppm
pH Range, Continuous	2-11
pH Range, Cleaning	1-13
Maximum Feed SDI (15 mins)	5
Maximum Element Pressure Drop	15 psi (1 bar)
Maximum Feed Flow	3.6 m³/h (4040), 17 m³/h (8040)
Minimum Ratio of Concentrate to Permeate Flow for Each Element	5:1

The limits shown above are for general applications. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane element.

We offer various RO membrane element equivalents. If you and your customer accept DuPont DOW FilmTec SW30XLE-440 RO membrane equivalent, please send us an inquiry now.
