Equivalent, replacement, alternative, analog, retrofit, analogue: Litree LJ1E1-1100-F180, LJ1E11100F180

General Information

TFSH18Q is manufactured as an equivalent, direct replacement, alternative, analog, retrofit and analogue to replace Litree MBR Membrane Module LJ1E-1100-V160 (LJ1E1100V160).
TFSH18Q hollow fiber MBR membrane have a great variety of potential combinations and are designed and manufactured for wastewater and sewage treatment plants. Consisting of a 0.02 micron PVDF Ultrafiltration membrane, provides excellent physical barrier to suspended solids, bacteria and other pathogens. The uniform pore size distribution ensures high permeability and sustainable operation.
The new generation of high flux modules for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.
These submerged hollow fiber membrane modules are providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the world.

Membrane Characteristics

  • High quality raw material
  • Reinforced membrane
  • High resistance to fouling
  • Direct and economical module replacement
Applications
  • Industrial wastewater
  • Municipal sewage
  • Domestic sewage
  • Submerged filtration
  • Pretreatment of industrial water
Module Specifications

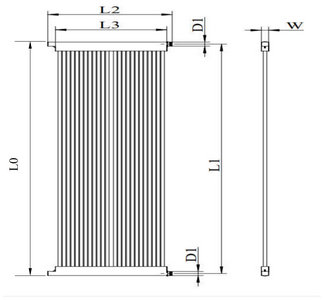

Litree LJ1E-1100-V160 MBR Membrane Equivalent Dimensions

Model

TFSH18Q

Membrane Surface Areas (m2/ft2)

18/193.76

Membrane Material

Reinforced PVDF (PET supporting layer)

Pore Size (μm)

0.02

ID/OD (mm/inch)

1.0/2.2 (0.039/0.087)

L0 (mm/inch)

1,222/48.11

L1 (mm/inch)

1,175/46.26

L2 (mm/inch)

721/28.39

L3 (mm/inch)

640/25.2

W (mm/inch)

70/2.75

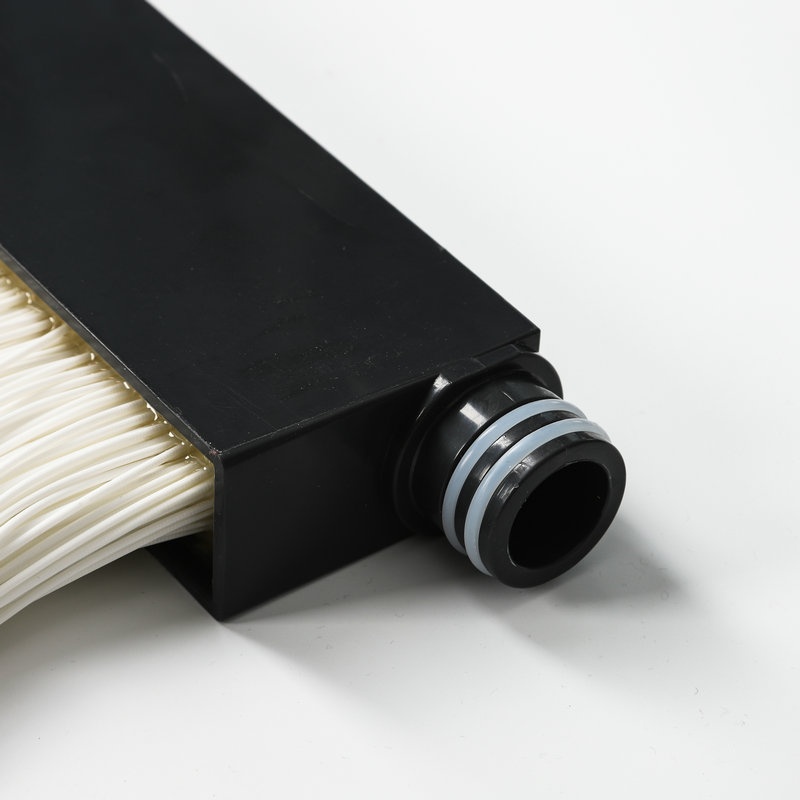

Filtrate Connector/D1

DN32 Quick Connector*

Flow Direction

Outside-in

Flow Type

Negative Suction Pressure

Backwash Type

Air Water Backwash

Flux Design (LMH)

10-30

Module Weight (kg/lb)

13/28.66

Sealing Material

PU

Conduit Material

ABS

Operation Flux (L/H)

285-865

Max TMP (Mpa/psi)

-0.06/-8.7

Operating Temperature (℃/°F)

5-45/41-113

Max Temperature (℃/°F)

45/113

Recommended pH Range

1-12

Max Active Chlorine (ppm)

1,000
