Kovalus Koch ROMIPRO 5043-66-43-PM500 Equivalent

Product No.：FS5043-66-43-500L-PH
Online Inquiry

Kovalus Koch ROMIPRO 5" Hollow Fiber Cartridge 5043-66-43-PM500 equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution UF membrane module: FS5043-66-43-500L-PH

Equivalent Comparison Chart for Replacement Purpose

Parameters	Cartridge	Equivalent Cartridge
Model	Kovalus Koch ROMIPRO 5" Hollow Fiber Cartridge 5043-66-43-PM500	FS5043-66-43-500L-PH
Dimensions	D 127 mm, L 1092 mm	D 127 mm, L 1092 mm
Connections	6” NPSM and 1 1/2” NPSM	6” NPSM and 1 1/2” NPSM
MWCO	500,000 Dalton	500,000 Dalton
Membrane Area	6.1 m²	6.1 m²
Flow Direction	Inside-out	Inside-out
Type of operation	Dead-end flow or cross flow	Dead-end flow or cross flow

General Information

FS5043-66-43-500L-PH is manufactured as the equivalent, direct replacement, alternative, retrofit and analogue to replace Kovalus Koch ROMIPRO 5043-66-43-PM500 0721195.
FS5043-66-43-500L-PH ultrafiltration membrane modules are developed and manufactured for separation, purification and concentration purposes in industrial and lab processes.
Fluxsep 5043 series FS5043-66-43-500L-PH ultrafiltration modules use naturally hydrophilic PES hollow fiber ultrafiltration membrane with excellent performance, which makes Fluxsep 5043 series modules the most robust PES (polyethersulfone) UF membrane on the market.

Features

Wide range of hollow fiber membrane inner diameter options
Linearly scalable from R&D scale to production scale
Good hydrophilicity, high flux, high separation accuracy, high processing efficiency
Low bioburden and low protein binding rate
Wide range of pore size selection from 3 kD to 750 kD
Material does not contain animal-derived ingredients
100% integrity test
Membrane shell materials meet USP Class VI requirements
Manufactured in clean rooms

Advantages

Excellent biosafety
High cleanliness for critical applications
Applicable for online steam sterilization
Lower operation costs by long service life
Economical equivalent module for direct replacement for Kovalus Koch ROMIPRO 5" Hollow Fiber Cartridge 5043-66-43-PM500 0721195

Applications

Monoclonal antibody clarification/concentration
Plasmid concentration/diafiltration
Protein concentration/purification/diafiltration
Nucleic acid concentration/diafiltration
Suspended solids removal
Vaccine concentration/purification
Virus concentration/purification/removal
Bacterial concentration/diafiltration
Pyrogen removal
Plasma purification/concentration
Buffer depyrogenation
Cell harvesting/concentration/clarification/purification
Colloid suspension concentration/diafiltration
Buffer continuous replacement
Cell culture continuous perfusion
Cell culture and clarification
Liposome purification
Lysate clarification
Mammalian cell clarification

Module Dimensions

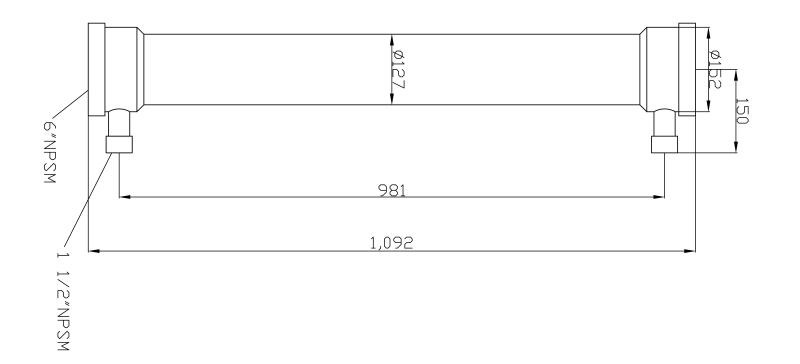

Kovalus Koch ROMIPRO 5043-66-43-PM500 Equivalent UF Cartridge Dimension

Model

L (mm/inch)

L1 (mm/inch)

D (mm/inch)

D1 (mm/inch)

W (mm/inch)

Feed/

Concentrate Port d1

Filtrate Port d2

FS5043-66-43-500L-PH

1,092/43

981/38.6

127/5.0

152/6.0

150/5.9

6” NPSM

1 1/2” NPSM

Specifications

Model	FS5043-66-43-500L-PH
MWCO	500,000 Dalton
Effective Membrane Area	6.1 m²/66 ft²
Fiber Inner Diameter	1.1 mm/43 mil
Membrane material	PES (polyethersulfone)
Housing Material	SS 316L
Potting Material	Proprietary Epoxy Compound
Storage Solution	Glycerin

Operating and Cleaning Limits

Flow Direction	Inside-out
Temperature Range (at pH 6)	1-60℃ (33.8-140°F)
Max. Feed Pressure	0.28 MPa (40 psi)
Max. Trans-Membrane Pressure	0.24 MPa (35 psi)
Max. Differential Pressure Feed Side	0.21 MPa (30 psi)
Max. Permeate Side Back Pressure	0.14 MPa (20 psi)
Max. Cleaning Temperature	60℃ (140°F)
pH-Continuous Operation	1.5 - 13 @ 54°C (130°F)
Max. Total Chlorine (During Cleaning)	200 ppm @ pH 10-10.5, 54°C (130°F) 0 ppm @ pH less than 9.5

Fluxsep offers equivalent replacement UF membrane cartridges for various brands. If you and your customer accept Kovalus Koch ROMIPRO 5" Hollow Fiber Cartridge 5043-66-43-PM500 0721195 equivalent UF membrane cartridge, please send us an inquiry now.
