General Information

TF7B0.9D-60WRL is manufactured as the direct equivalent, replacement, alternative, retrofit and analogue to replace Suez ZW700B UF membrane module.

TF7B0.9D-60WRL ultrafiltration membrane modules are developed and manufactured as equivalents, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, seawater and industrial wastewater. TF7B0.9D-60WRL ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow direction. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced ultrafiltration technology, which makes TF7B0.9D-60WRL ultrafiltration membrane modules the most robust PES (polyethersulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

• The 3^rd generation modified PES membrane fibers of 7 bores
• A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
• Inside-out flow direction without air scouring
• Typical filtrate quality SDI < 2.5, turbidity < 0.1 NTU

Advantages

• Extremely high mechanical strength with no fiber breakage
• High chemical tolerance
• High-quality filtrate by reliable blocking of microorganisms and viruses
• Minimum operating costs and efficient backwash
• Economical equivalent module for direct replacement to Suez ZW700B as plug-and-play

Applications

• Portable water
• Municipal water
• Industrial process water
• Reclaimed water reuse
• Pre-treatment of seawater desalination

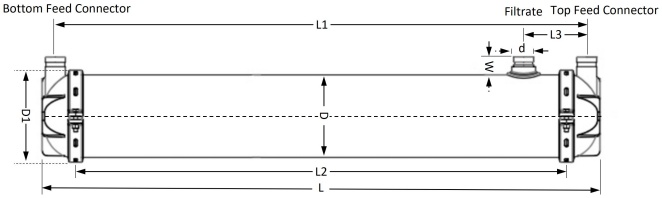

Module Dimensions
