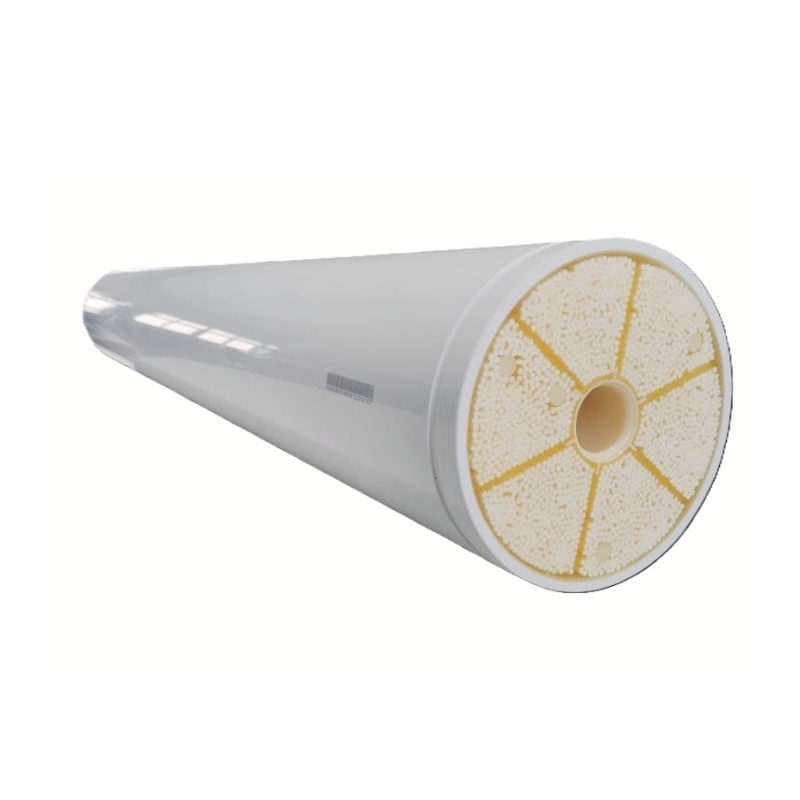

IntegraTec MB 40 HB Equivalent

Product No.：TF7B0.8ZW-40
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: DuPont IntegraTec MB 40 HB, SevenBore IntegraTec MB40HB (12071520)

General Information

TF7B0.8ZW-40 is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace DuPont IntegraTec MB 40 HB, SevenBore IntegraTec MB40HB (12071520) UF module, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water and industrial wastewater. TF7B0.8ZW-40 ultrafiltration elements use Tanal’s SevBore fiber technology with an inside-out flow. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced modification technology, which makes TF7B0.8ZW-40 ultrafiltration membrane modules the most robust PES (polyethersulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
Inside-out flow direction without air scouring
PES membrane fibers of 7 bores
Typical filtrate quality SDI < 2.5, turbidity < 0.1 NTU

Advantages

Extremely high mechanical strength avoiding fiber breakage
High chemical tolerance
High-quality filtrate by reliable blocking of microorganisms and viruses
Minimum operating costs and efficient backwash
Economical equivalent module for direct replacement of DuPont IntegraTec MB 40 HB (12071520) by plug-and-play

Applications

Surface water
Potable water
Seawater desalination
Pre-treatment of industrial water
Industrial wastewater

Module Dimensions

DuPont IntegraTec MB 40 HB (12071520) Ultrafiltration Module Equivalent Dimension

Model	L (mm/inch)	D (mm/inch)	Filtrate connection d (mm/inch)
TF7B0.8ZW-40	1527.5/60.14	220/7.9	42.6/1.68

Specifications

Model	TF7B0.8ZW-40
Effective membrane area	40 m² (431 ft²)
Weight	19 KG (42 lbs)
Fiber ID/OD	0.8/3.6 mm (0.03/0.14 inch)
Membrane material	Modified PES (polyethersulfone), 7 bores
Pore size	0.02 μm
Housing material	UPVC
Sealing material	EPDM
Potting material	Epoxy resin

Operating and Cleaning Limits

Direction of installation	Horizontal
Type of operation	Dead-end flow or cross flow
Flow direction	Inside-out
Temp. range	1-40℃ (34-104°F)
Max. feed pressure	4 bar (58 psi)
Max. trans-membrane pressure	2.5 bar (36 psi)
Max. backwash pressure	3 bar (43.5 psi)
Backwash/forward flush maximum	250 l/m²h (150 gfd)
pH-continuous operation @ 25℃	2-11
pH-CIP @ 25℃	1-13
Hypochlorite (NaClO) for cleaning	50 to 200 ppm
Hydrogen peroxide for cleaning	100 to 200 ppm

We offer various UF membrane module equivalents. If you and your customer accept DuPont IntegraTec MB 40 HB (12071520) without end-caps equivalent ultrafiltration membrane module, please send us an inquiry now.
