Products >> MF Membrane Cartridge >> PES MF Membrane Cartridge

MaxCell CFP-6-D-65 Equivalent

Product No.：TFXP-65U-10-0780
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Cytiva MaxCell Microfiltration Cartridge CFP-6-D-65, CFP6D65

General Information

TFXP-65U-10-0780 is manufactured as an equivalent, replacement, alternative, retrofit, analogue and derivative to Cytiva MaxCell Microfiltration Cartridge CFP-6-D-65 (CFP6D65).
TaFlux Bio P series TFXP-65U-10-0780 microfiltration membrane modules are developed and manufactured for separation, purification and concentration purposes in industrial and lab processes.
TaFlux Bio P series TFXP-65U-10-0780 microfiltration modules use naturally hydrophilic PES hollow fiber microfiltration membrane with excellent performance, which makes TaFlux Bio series modules the most robust PES (polyethersulfone) MF membrane on the market.

Features

Wide range of hollow fiber membrane inner diameter options
Linearly scalable from R&D scale to production scale
Good hydrophilicity, high flux, high separation accuracy, high processing efficiency
Low bioburden and low protein binding rate
Wide range of pore size selection from 0.1 μm to 0.65 μm
Material does not contain animal-derived ingredients
100% integrity test
Membrane shell materials meet USP Class VI requirements
Manufactured in clean rooms

Advantages

Excellent biosafety
High cleanliness for critical applications
Applicable for online steam sterilization
Lower operation costs by long service life
Economical equivalent module for direct replacement of Cytiva MaxCell Microfiltration Cartridge CFP-6-D-65

Applications

Monoclonal antibody clarification/concentration
Plasmid concentration/diafiltration
Protein concentration/purification/diafiltration
Nucleic acid concentration/diafiltration
Suspended solids removal
Vaccine concentration/purification
Virus concentration/purification/removal
Bacterial concentration/diafiltration
Pyrogen removal
Plasma purification/concentration
Buffer depyrogenation
Cell harvesting/concentration/clarification/purification
Colloid suspension concentration/diafiltration
Buffer continuous replacement
Cell culture continuous perfusion
Cell culture and clarification
Liposome purification
Lysate clarification
Mammalian cell clarification

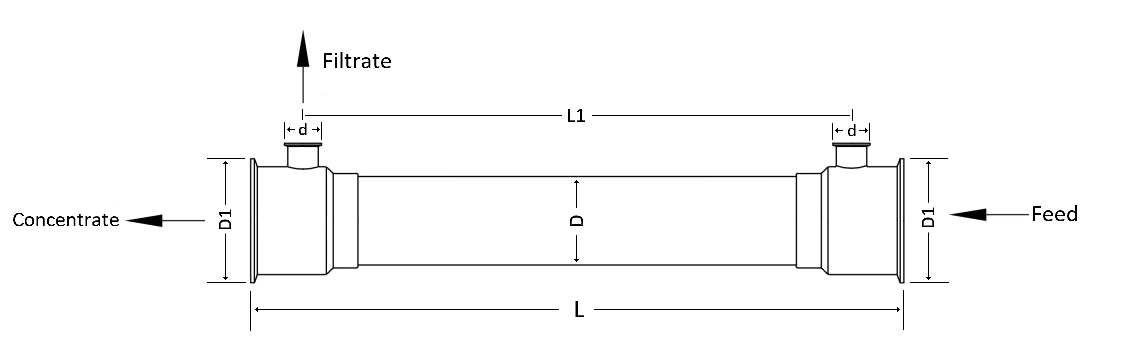

Module Dimensions

Cytiva MaxCell Microfiltration Cartridge CFP-6-D-65 Equivalent Dimension

Model	Overall Length L (mm/inch)	Length L1 (mm/inch)	Diameter D (mm/inch)	Concentrate Port D1 (mm/inch)	Filtrate Port d (mm/inch)
TFXP-65U-10-0780	780/30.71	639/25.16	119/4.69	166.8/6.57	50.5/1.99

Specifications

Model	TFXP-65U-10-0780
Pore Size	0.65 μm
Fiber Inner Diameter	1.0 mm/0.039 inch
Effective Membrane Area	6.2 m²/66.7 ft²
Membrane material	PES (polyethersulfone)
Housing Material	Polysulfone
Potting Material	Proprietary Epoxy Compound
Storage Solution	Glycerin

Operating and Cleaning Limits

Flow Direction	Inside-out
Temperature Range (at pH 6)	1-60℃ (33.8-140°F)
Max. Feed Pressure	2.8 bar (40 psi)
Max. Trans-Membrane Pressure	2.4 bar (35 psi)
Max. Differential Pressure Feed Side	2.1 bar (30 psi)
Max. Permeate Side Back Pressure	1.4 bar (20 psi)
Max. Cleaning Temperature	60℃ (140°F)
pH-Continuous Operation	1.5 - 13 @ 54°C (130°F)
Max. Total Chlorine (During Cleaning)	200 ppm @ pH 10-10.5, 54°C (130°F) 0 ppm @ pH less than 9.5

We offer various PES MF membrane module equivalents. If you and your customer accept Cytiva MaxCell Microfiltration Cartridge CFP-6-D-65 equivalent microfiltration cartridge, please send us an inquiry now.
