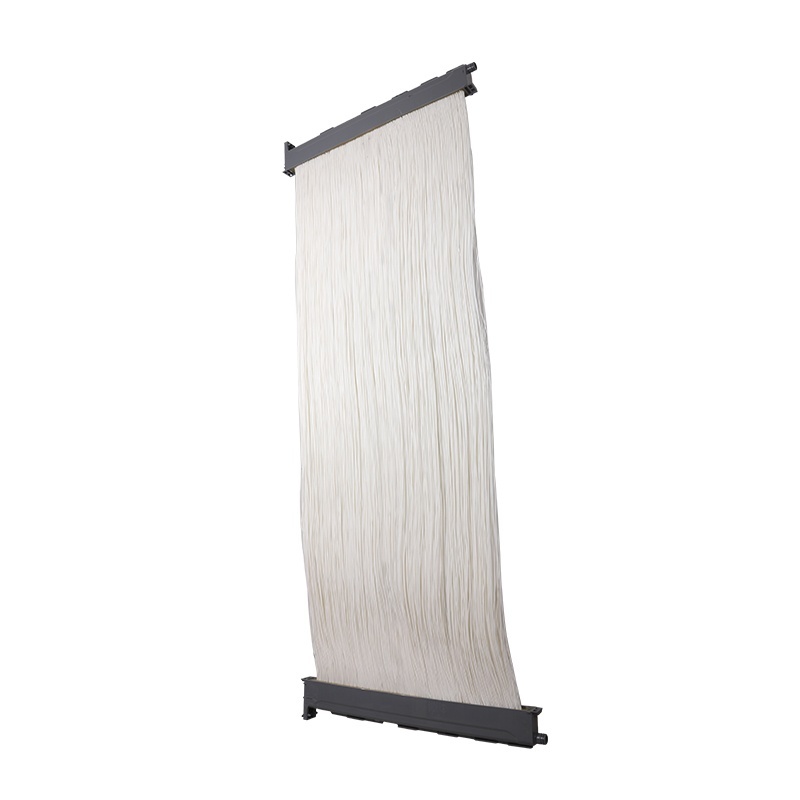

ZeeWeed 500D12 Equivalent

Product No.：TFZWS34Q
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Veolia Suez GE Zeeweed 500D12, ZW500D12 MBR Module

General Information

TFZWS34Q is manufactured as an equivalent, replacement, alternative, retrofit and analogue to Veolia Suez GE Zeeweed 500D12 MBR membrane module.

TFZWS34Q hollow fiber MBR membrane modules are designed and manufactured mainly for wastewater and sewage treatment plants. Consisting of a 0.04 micron PVDF ultrafiltration hollow fiber membrane,TaFlux ZW Select MBR modules provide excellent physical barrier to suspended solids, bacteria and other pathogens. The uniform pore size distribution ensures high permeability and sustainable high-quality filtrate.

The new generation of large modules for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.

Advanced manufacturing process of arraying fibers avoids twined fibers and less sludge accumulation, leading to sufficient filtration area, high flux and better backwash performance.

TaFlux ZW Select series submerged hollow fiber membrane modules are providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the globe.

Membrane Characteristics

Reinforced membrane
Manufacturing process of arraying fibers
Soft resin protection on potting part
Compact design
High resistance to fouling

Advantages

Long service life to reduce OPEX
More effective membrane area
Less sludge accumulation
Stable flux with high recovery rate by cleaning
Economical equivalent module for direct replacement of Veolia Suez GE Zeeweed 500D12

Applications

Industrial wastewater
Municipal and domestic sewage
Submerged filtration
Pretreatment of industrial water

Module Dimensions

H (mm/inch)	H1 (mm/inch)	H2 (mm/inch)	H3 (mm/inch)	W (mm/inch)	T (mm/inch)
2,198/86.5	2,122.6/83.57	2,090/82.3	1,940/76.4	844/33.2	49/1.9

Specifications

Model	TFZWS34Q
Membrane Surface Area (m²/ft²)	34.4 / 370
Fiber ID/OD (mm/inch)	0.8 / 1.9 (0.03 / 0.07)
Membrane Material	Reinforced PVDF (PET supporting layer)
Pore Size (μm)	0.04
Surface Properties	Hydrophilic and non-ionic
Flow Direction	Outside-in
Potting Material	PU
End Cap Material	ABS
Sealing O-ring Material	Buna-N
Permeate Tube ID (mm/inch)	19 / 0.75
Permeate Tube OD (mm/inch)	27 / 1.06
Permeate Tube OD with O-rings (mm/inch)	27.4 / 1.04
Module Weight (kg/lb)	28 / 61

Operating and Cleaning Limits

Flux Design (LMH)	10-35*
Average Initial Permeability at 20°C L/(h·m²·bar)	250
Flow Type	Negative Suction Pressure
Backwash Type	Air Water Backwash
Max. TMP (MPa/psi)	-0.055/-8
Operating Temperature (℃/°F)	5-40/41-104
Operating pH Range	5-10
Cleaning pH Range	2 - 11 (<30℃) 2 - 10.5 (30℃ - 40℃)
Max. Active Chlorine (ppm)	1,000

* Flux design is normally 10-30 LMH, flux over 30 LMH is mostly applied for the cleaning procedures.

We offer various MBR membrane module equivalents. If you and your customer accept Veolia Suez GE Zeeweed 500D12 equivalent MBR membrane module, please send us an inquiry now.
