55E0025SA Equivalent

Product No.：TFEU25
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Mitsubishi STERAPORE 5500 Series (PVDF) Element 55E0025SA MBR Membrane

General Information

TFEU25 is manufactured as an equivalent, direct replacement, alternative, retrofit and analogue to Mitsubishi STERAPORE 5500 Series (PVDF) Element 55E0025SA.
They are suitable for replacement in Mitsubishi STERAPORE 5500 Series PVDF Module 55M0250FF, 55M0500FF, 55M0750FF, 55M1000FF, 55M1500FF MBR Module.

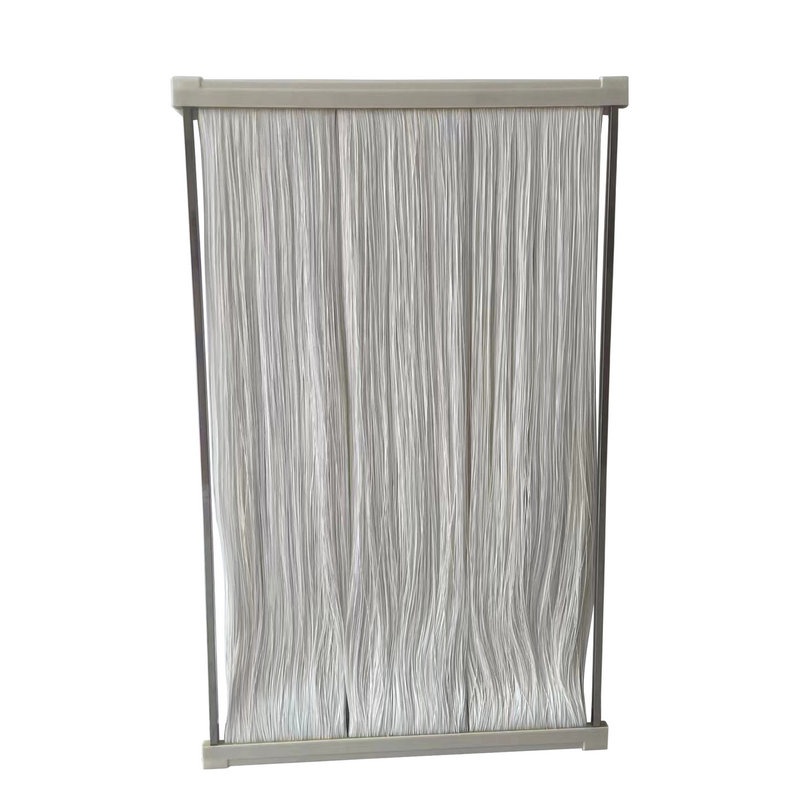

TFEU25 hollow fiber MBR membrane modules are developed and manufactured mainly for wastewater and sewage treatment plants. Consisting of a 0.05 micron PVDF ultrafiltration hollow fiber membrane, TaFlux Era U MBR modules provide excellent physical barrier to suspended solids, bacteria and other pathogens. The uniform pore size distribution ensures high permeability and sustainable high-quality filtrate.
The new generation of large TFEU25 modules for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.
TFEU25 submerged hollow fiber membrane modules are providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the globe.

Membrane Characteristics

Reinforced membrane
Manufacturing process of arraying fibers
Soft resin protection on potting part
Finer pore size
High resistance to fouling

Advantages

Long service life to reduce OPEX
Less sludge accumulation
High quality filtrate
Stable flux with high recovery rate by cleaning
Economical module for direct replacement

Applications

Industrial wastewater
Municipal sewage
Domestic sewage
Submerged filtration
Pretreatment of industrial water

Module Dimensions

Model	H (mm/inch)	W (mm/inch)	T (mm/inch)
TFEU25	2,000/78.74	1,250/49.21	30/1.18

Specifications

Model	TFEU25
Membrane Surface Areas (m²/ft²)	25/269
Membrane Material	Reinforced PVDF (PET supporting layer)
Pore Size (μm)	0.05
ID/OD (mm/inch)	1.0/2.2 (0.04/0.09)
Flow Direction	Outside-in
Sealing Material	Polyurethane resin
Conduit Material	ABS
Shaft	SUS316L
Module Weight (kg/lb)	15/33

Operating and Cleaning Limits

Model	TFEU25
Flux Design (LMH)	10 - 35*
Operation Flow (L/H)	350 - 1,225
Flow Type	Negative Suction Pressure
Backwash Type	Air Water Backwash
Max TMP (MPa/psi)	-0.055/-8
Operating Temperature (℃/°F)	5 - 45/41 - 113
Operation pH Range	2 - 11
Cleaning pH Range	1 - 12
Max Active Chlorine (ppm)	1,000
